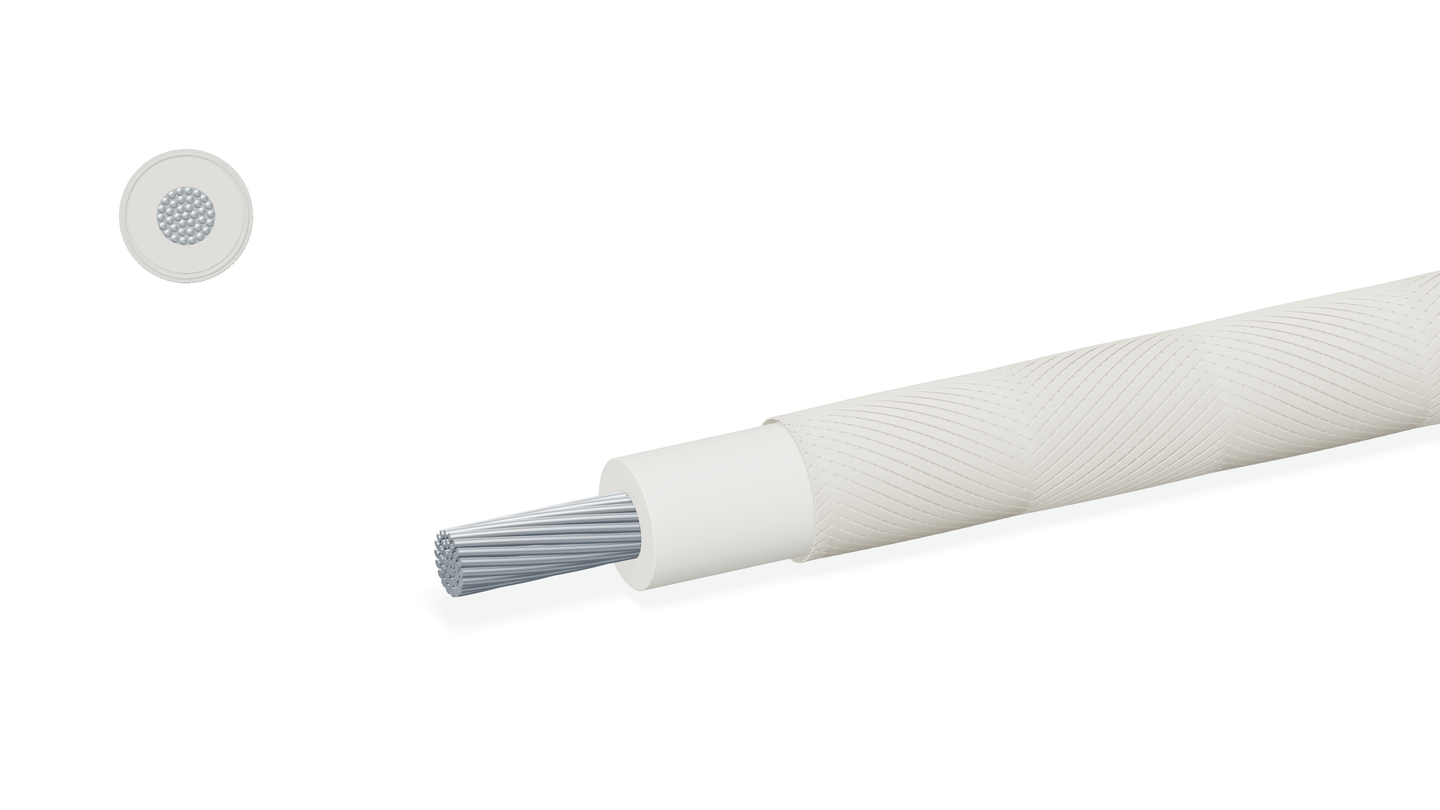

Cable construction

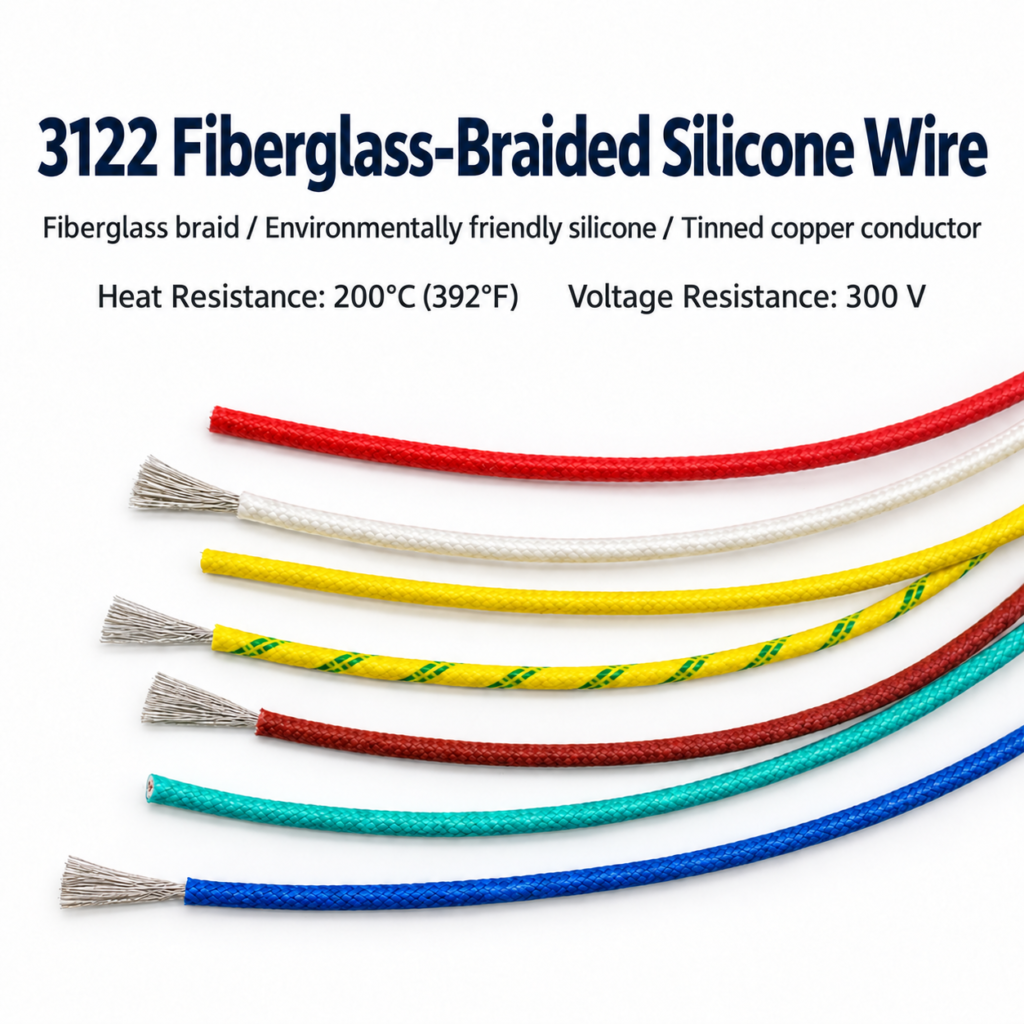

Fiberglass-Braided Silicone Wire
- Core sizes
- Ask about the required size
Silicone wire & cable / Braided Silicone Cables
Braided Silicone Wire & Cable
Glass-fibre protection, copper screening or an outer steel braid.
Choose the braid by its job. We can develop a silicone cable around a glass-fibre protective covering, a tinned-copper electrical screen or an outer metal braid, with the layer arrangement and verification agreed for your project.

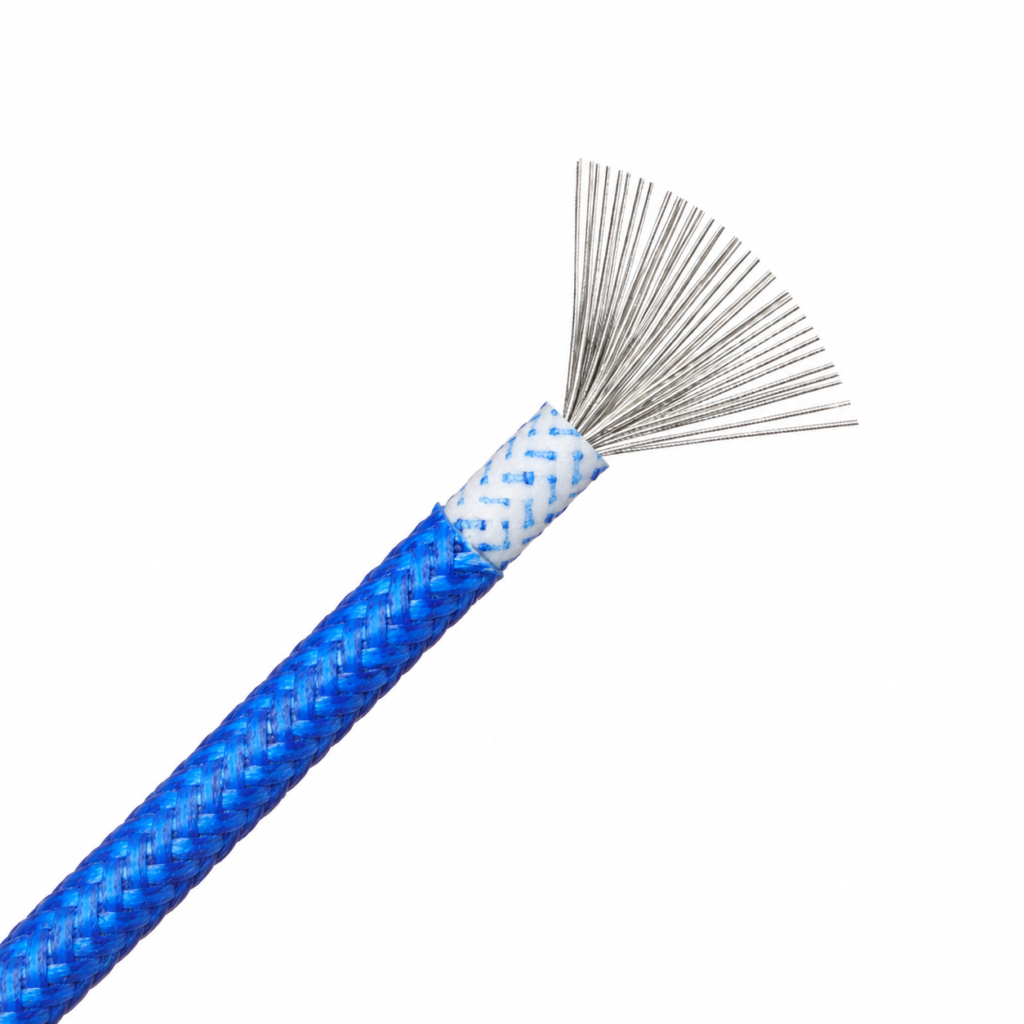

- Glass-fibre protection
- Copper-braid screening
- Outer steel protection
Browse the range
Browse Braided Silicone Cables
Compare the construction and the listed core sizes. Open a product for its dimensions and specification.
Custom braid designs are developed to the agreed drawing. Specify the braid material, layer position, dimensions, ratings and acceptance tests.
4 products
Unscreened
SRG Silicone Glass-Braided Wire
- Core sizes
- 8 AWG / 10 AWG / 12 AWG / 14 AWG / 16 AWG / 18 AWG
Unscreened
SRML Silicone Motor Lead Wire
- Core sizes
- 12 AWG / 14 AWG / 16 AWG / 18 AWG
Need another construction?
Share the materials, dimensions and operating conditions required by your equipment.
Discuss a custom cable →Inside the factory
Silicone Extrusion and Cable Manufacturing Support
See the silicone processing area and inspection work at ANYANG. Discuss the construction and operating requirements for your selected cable.
Inside silicone processing
Silicone extrusion and rubber mixing equipment
Our production equipment includes silicone extruders and silicone rubber mixing machines.
Our process, quality inspection and custom development teams can review your specification and project requirements.
Why ANYANG
Why Choose ANYANG for Custom Cable Supply?
Factory facilities, drawing review and visible inspection work support a clear cable specification.
Silicone processing facilities
Silicone extrusion and rubber mixing equipment are part of our production facilities. Take a closer look at the workshop.
Inside the factoryBraid Material and Layer Review
Braid material and role, Layer arrangement, Dimensions and acceptance: discuss these requirements with our process and custom development teams.
Custom cable supportConductor Testing and Wire Inspection
View conductor-resistance testing and wire first-inspection work from our factory. Confirm the inspection and documentation requirements for the cable you select.
Quality & testing
Braid comparison
Silicone Cable Braid Materials and Design Options
These are distinct custom design starting points supported by established cable constructions. Materials, dimensions and ratings are defined in the agreed project specification.
| Design route | Starting construction | Application focus |
|---|---|---|
| Glass-fibre protective braid | Stranded tinned copper → silicone insulation → impregnated glass-fibre outer braid. | Additional protective covering for internal appliance, heater and lighting connections; define the finish and stripping requirements. |
| Tinned-copper electrical screen | Insulated cores → wrapping → overall tinned-copper braid → silicone outer sheath. | Screened equipment connections; specify optical coverage, frequency requirements and screen termination. |
| Galvanised-steel outer braid | Silicone-insulated cores → silicone sheath → glass-fibre tape → outer galvanised-steel braid. | A mechanical-protection route for dry industrial installations. Define contact conditions and the available routing space. |
Layer position
Internal Screens vs Exposed Protective Braids
Select the exposed protective covering or the internal electrical screen explicitly; they perform different jobs.
Copper-Braid Screen Beneath the Sheath
The documented YGGP braid sits beneath a silicone outer sheath. Confirm the materials on either side and the finished diameter.
Individual-Core or Overall Braid Position
Show what the braid surrounds. An overall screen does not establish individual core or pair screening.
Exposed Glass-Fibre or Metal Overbraid
For an external protective covering, choose the glass-fibre finish or metal-braid construction around the surface-contact conditions. Include the finished diameter and end preparation in the drawing.
What to specify
Braid Selection, End Preparation and Acceptance Tests
Supply dimensions together with the electrical or mechanical requirement.
Braid Material and Protective or Screening Function
State the braid material required and whether the purpose is electrical screening, mechanical protection or both.
Mechanical or Electrical Acceptance Tests
Include the required screening or mechanical test and its acceptance criteria. A braid alone does not establish a tear or abrasion rating.
Cable Entries, Connectors and Stripping
Provide the cable-entry, connector and stripping details that constrain the layer arrangement.
Custom & supply
Custom cable production and supply for your project
We manufacture custom cables to the agreed project specification. Share your drawing, operating conditions, quantity and delivery destination so we can define the construction, samples and supply terms.
Discuss your specification- Braid material and role
- Specify the fibre or metal required and whether the purpose is electrical screening or mechanical protection.
- Layer arrangement
- Show what the braid surrounds and whether it is exposed or beneath a sheath.
- Dimensions and acceptance
- Include finishing, termination and test requirements with the cable dimensions and quantity.
Packing & delivery
Supply lengths, labels and delivery requirements
Include the required length per coil or reel, order quantity, labelling and delivery destination. Packing method, minimum order quantity and lead time are confirmed for the project.
See packing & delivery information
Free samples
Free Samples of Braided Silicone Cables
We offer free samples.
Braided Silicone Cables: questions before ordering.
Which braid should I choose?
Choose glass-fibre braid for an additional protective covering, tinned-copper braid for electrical screening, or an outer steel braid for a separately specified mechanical-protection duty. The custom drawing identifies the material and layer position.
Is the documented braid exposed?
No. The YGGP sheet places the tinned-copper braided screen inside the silicone outer sheath. An exposed overbraid is a separate construction requirement.
Can a protective braid be treated as an electrical screen?
Specify mechanical protection and electrical screening separately. The word “braided” alone does not establish the material or the required performance.
What is a practical glass-fibre-braided construction?
A concrete starting point is a stranded tinned-copper conductor, silicone insulation and an impregnated glass-fibre overbraid. Define conductor size, braid finish, finished diameter, operating temperature and required tests for the project.
CABLE SELECTION & QUOTATIONS
Send your drawing or cable requirements.
You do not need an ANYANG model number. Share a drawing, existing cable marking or a description of your equipment.
Include the quantity you need and any known dimensions, voltage, temperature or movement requirements. We will check the specification with you.
