Unscreened
7 mm Copper-Core Silicone Ignition Cable
- Core sizes
- 16 AWG
Silicone wire & cable / Silicone Ignition Wires
Silicone Ignition Wires
Custom ignition leads: 1.0 mm² conductor, 5 mm or 7 mm diameter briefs.
Start with stranded tinned copper and silicone insulation, then match the cable diameter, length and end connections to the ignition equipment. A glass-fibre-braided, silicone-sheathed version is a separate development route.
- 1.0 mm² design starting point
- 5 / 7 mm diameter options
- Equipment-matched ends
Browse the range
Browse Silicone Ignition Wires
Compare the construction and the listed core sizes. Open a product for its dimensions and specification.
Custom ignition leads follow the agreed equipment duty, cable construction and terminal drawing. Ignition voltage, dielectric-test voltage and continuous working voltage remain separate specification fields.
1 product
Need another construction?
Share the materials, dimensions and operating conditions required by your equipment.
Discuss a custom cable →Inside the factory
Silicone Extrusion and Cable Manufacturing Support
See the silicone processing area and inspection work at ANYANG. Discuss the construction and operating requirements for your selected cable.
Inside silicone processing
Silicone extrusion and rubber mixing equipment
Our production equipment includes silicone extruders and silicone rubber mixing machines.
Our process, quality inspection and custom development teams can review your specification and project requirements.
Why ANYANG
Why Choose ANYANG for Custom Cable Supply?
Factory facilities, drawing review and visible inspection work support a clear cable specification.
Silicone processing facilities
Silicone extrusion and rubber mixing equipment are part of our production facilities. Take a closer look at the workshop.
Inside the factoryIgnition Duty and Connection Review
System and electrical duty, Connections and routing, Environment and verification: discuss these requirements with our process and custom development teams.
Custom cable supportConductor Testing and Wire Inspection
View conductor-resistance testing and wire first-inspection work from our factory. Confirm the inspection and documentation requirements for the cable you select.
Quality & testing
Custom configurations
Silicone Ignition Wire Designs and Connection Options
These are custom project starting points. The system duty, released cable specification and sample acceptance establish the final rating and connection compatibility.
Silicone-Insulated Ignition Lead
A 1.0 mm² stranded tinned-copper conductor with a nominal 5 mm or 7 mm outside diameter is a concrete starting point. Define the required ignition duty and continuous temperature, such as a 180°C (356°F) project requirement, with the equipment conditions.

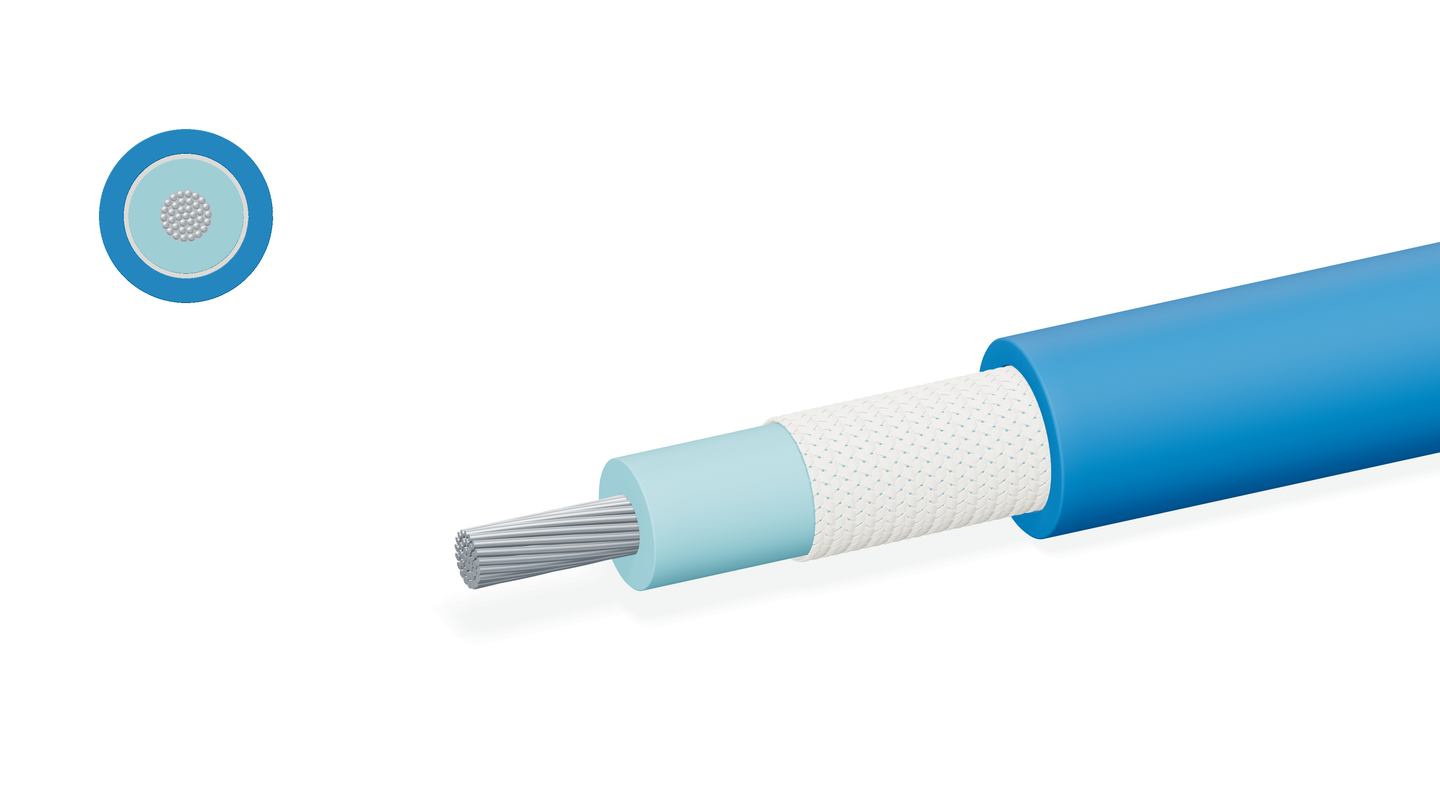

Glass-Fibre-Braided, Silicone-Sheathed Design
For a separately specified covered construction, develop tinned copper → silicone insulation → glass-fibre braid → silicone outer sheath. Choose the conductor size and finished diameter for the system rather than transferring the dimensions of the single-insulation version.
Straight and Right-Angle Ignition Connections
Use the transformer and electrode drawings to define straight or right-angle layouts, terminal/boot interfaces, cable length and stripped lengths. Match the cable diameter to the connection and review the complete route.
Not interchangeable
Ignition Voltage vs Dielectric Test Voltage
A 15 kV or 20 kV dielectric-test target can be specified for the selected construction, with its method and duration. It is not a continuous operating-voltage rating.
| Description | What to provide | What it does not establish |
|---|---|---|
| Operating or ignition requirement | The system requirement, waveform and conditions | A universal cable structure or compatibility with every ignition system. |
| Withstand test | Test method, voltage, duration and acceptance | A continuous working-voltage rating or service life. |
| Breakdown value | The defined test conditions and result, if required | A permissible operating voltage for the cable. |
Technical review
Ignition Lead Dimensions, Terminals and Verification
Bring the system requirement, cable envelope and connections into one review.
Conductor Size, Diameter and Ignition Duty
Specify conductor size, ignition pulse or RMS duty, continuous temperature, cable length and outside diameter. The 1.0 mm² and 5/7 mm examples are project starting points rather than a universal ignition-wire specification.
Transformer and Electrode Interfaces
Include the transformer and electrode interfaces, straight or angled end layout and cable route. Cable length, suppression components and routing limits follow the specific ignition-system instructions.
Ignition Cable Tests and Documentation
State the required verification, documentation, sample needs and order quantity. The proposed specification must establish the construction and ratings.
Custom & supply
Custom cable production and supply for your project
We manufacture custom cables to the agreed project specification. Share your drawing, operating conditions, quantity and delivery destination so we can define the construction, samples and supply terms.
Discuss your specification- System and electrical duty
- Identify the equipment, original reference and required operating or ignition characteristics.
- Connections and routing
- Provide terminal or boot drawings, cable length, dimensions and the route between connections.
- Environment and verification
- State heat exposure, movement, required tests, sample needs and order quantity.
Packing & delivery
Supply lengths, labels and delivery requirements
Include the required length per coil or reel, order quantity, labelling and delivery destination. Packing method, minimum order quantity and lead time are confirmed for the project.
See packing & delivery information
Free samples
Free Samples of Silicone Ignition Wires
We offer free samples.
Silicone Ignition Wires: questions before ordering.
What is a concrete starting configuration for an ignition lead?
A custom brief can start with 1.0 mm² stranded tinned copper, silicone insulation and a 5 mm or 7 mm outside diameter. A glass-fibre-braided, silicone-sheathed construction is another route with its own dimensions. Match both to the equipment duty and connection drawings.
Which voltage should I provide?
Supply the system’s operating or ignition-voltage requirement and identify test and breakdown values separately. Include the waveform and relevant conditions.
Can straight or right-angle ends be specified?
Yes. Provide the transformer and electrode drawings, the terminal or boot interface, cable length and route. The proposed straight or right-angle connection layout is checked as an assembly with the selected cable.
CABLE SELECTION & QUOTATIONS
Send your drawing or cable requirements.
You do not need an ANYANG model number. Share a drawing, existing cable marking or a description of your equipment.
Include the quantity you need and any known dimensions, voltage, temperature or movement requirements. We will check the specification with you.
