Silicone wire & cable / Extra-Flexible Silicone Wires & Cables
Extra-Flexible Silicone Wires & Cables
Fine-strand silicone designs for compact routing and defined motion.
Compare conductor size, strand count and individual wire diameter. The factory 18 AWG single-core example uses 150/0.08 mm stranding and a 2.3 mm outside diameter; finer-strand and moving-cable designs can be developed to a separate project specification.
- Strand construction
- Finished wire or cable size
- Actual movement duty

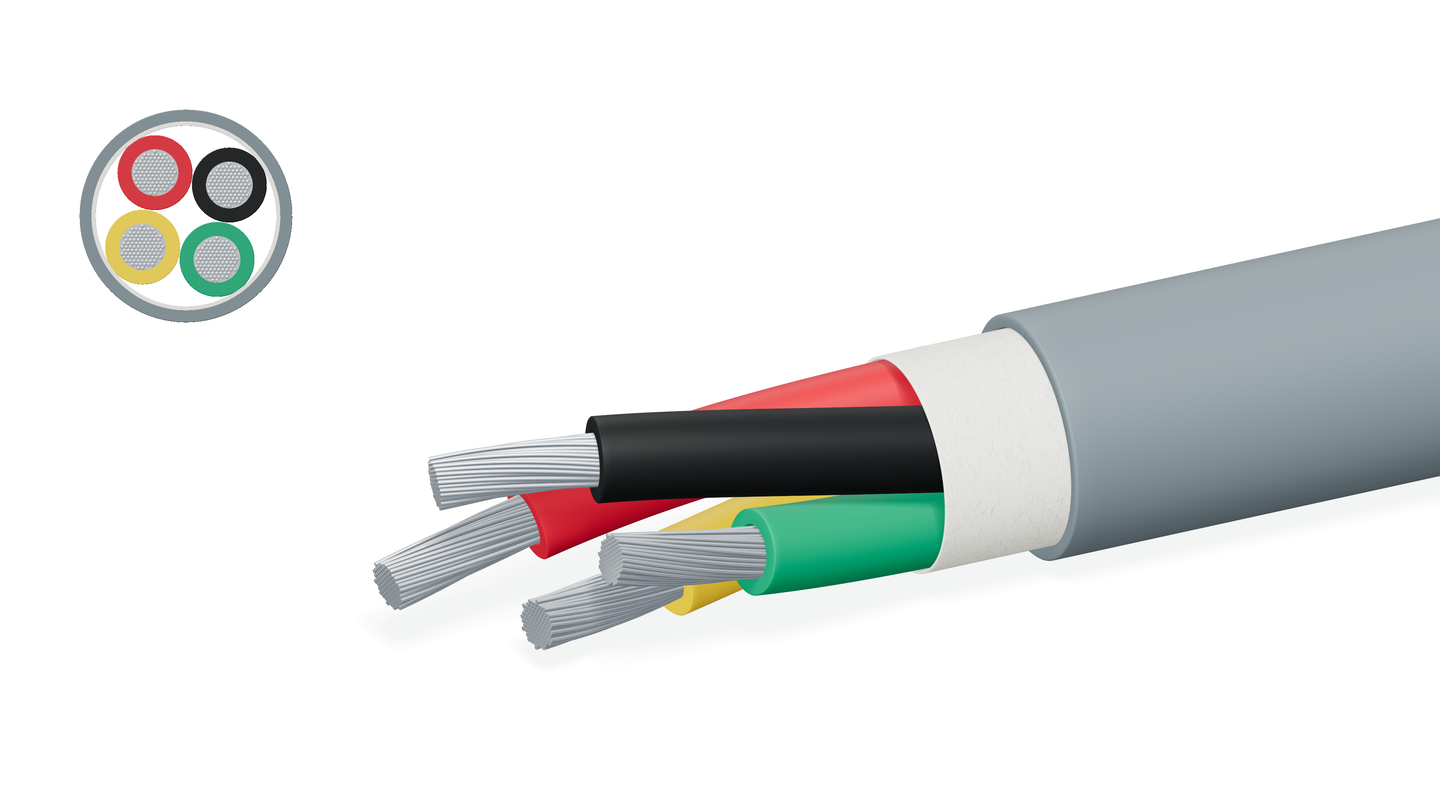

Sheathed multicore reference illustration. Confirm the strand build, core arrangement and layers in the selected product drawing.
Browse the range
Browse Extra-Flexible Silicone Wires & Cables
Compare the construction and the listed core sizes. Open a product for its dimensions and specification.
27 products
Unscreened
2-Core Silicone Cable – Extra-Flexible Tinned Copper
- Core sizes
- 0.5 mm² / 0.75 mm² / 1 mm² / 1.5 mm² / 2.5 mm² / 4 mm²
Unscreened
3-Core Silicone Cable
- Core sizes
- 0.5 mm² / 0.75 mm² / 1 mm² / 1.5 mm² / 2.5 mm² / 4 mm²
Unscreened
4-Core Silicone Cable – Extra-Flexible Tinned Copper
- Core sizes
- 0.5 mm² / 0.75 mm² / 1 mm² / 1.5 mm² / 2.5 mm² / 4 mm²
Unscreened
5-Core Silicone Cable – 5 × 0.3 mm², 600 V
- Core sizes
- 0.3 mm²
Unscreened
6-Core Extra-Flexible Silicone Cable
- Core sizes
- 0.5 mm² / 1 mm² / 1.5 mm²
Unscreened

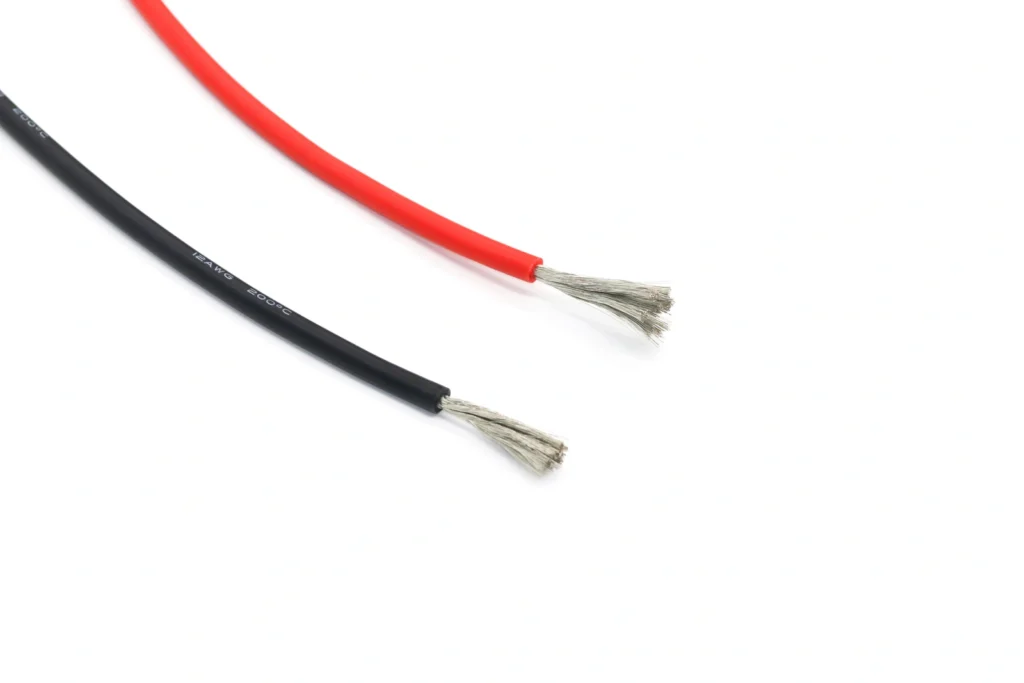

12 AWG Duplex Silicone Wire
- Core sizes
- 12 AWG
Need another construction?
Share the materials, dimensions and operating conditions required by your equipment.
Discuss a custom cable →Inside the factory
Silicone Extrusion and Cable Manufacturing Support
See the silicone processing area and inspection work at ANYANG. Discuss the construction and operating requirements for your selected cable.
Inside silicone processing
Silicone extrusion and rubber mixing equipment
Our production equipment includes silicone extruders and silicone rubber mixing machines.
Our process, quality inspection and custom development teams can review your specification and project requirements.
Why ANYANG
Why Choose ANYANG for Custom Cable Supply?
Factory facilities, drawing review and visible inspection work support a clear cable specification.
Silicone processing facilities
Silicone extrusion and rubber mixing equipment are part of our production facilities. Take a closer look at the workshop.
Inside the factoryStrand Build and Movement Requirements
Conductor and format, Dimensions and terminations, Motion and verification: discuss these requirements with our process and custom development teams.
Custom cable supportConductor Testing and Wire Inspection
View conductor-resistance testing and wire first-inspection work from our factory. Confirm the inspection and documentation requirements for the cable you select.
Quality & testing
Conductor design
Extra-Flexible Silicone Wire: Strands and Dimensions
The factory extra-flexible single-core sheet explicitly lists 0.08 mm strands. Confirm the selected size and strand count rather than applying one build to every product.
Conductor Size, Strand Count and Wire Diameter
As one documented single-core example, the factory sheet lists 18 AWG with a 150/0.08 strand construction.
Silicone Insulation and Finished Wire Diameter
The same 18 AWG single-core example has silicone insulation and a listed 2.3 mm finished outside diameter. Conductor size is not the outside diameter.
Sheathed Cable Layers and Total Diameter
For a sheathed cable, confirm core count, area per conductor, insulation, wrapping and total outside diameter using its own specification. Do not transfer the single-core strand details to another series.
Wire or cable
Single-Core Wire vs Extra-Flexible Sheathed Cable
Compare the complete build as well as the conductor flexibility.
| Format | Documented construction | Installation review |
|---|---|---|
| Extra-flexible single-core | Tinned-copper stranding and silicone insulation; selected AWG sizes have their own strand and diameter entries. | Confirm the selected wire, route, terminal fit and movement requirement. |
| Extra-flexible sheathed | The factory reference lists Class 6 tinned copper, silicone core insulation, tissue-paper wrapping and silicone sheath. | The reviewed application note describes fixed installation and occasional movement; repeated-motion duty needs separate confirmation. |
Motion & sourcing
Fine-Strand Options and Flex-Life Test Requirements
Choose a concrete strand or motion target, then verify the complete cable. The following custom options do not establish a category-wide flex-life rating.
Fine-Strand Conductor Options
For a finer-strand custom brief, discuss 0.05 mm or 0.07 mm individual-wire options. Set the strand count for the required cross-section and confirm finished diameter and terminal compatibility.
Repeated-Motion Cable Design Requirements
A high-temperature moving-cable candidate can combine Class 6 conductors, FEP core insulation, layered non-woven wrapping and a silicone sheath. A 10 × finished-diameter bend radius can be an initial qualification target, subject to the selected construction.
Flex-Life Test Conditions and Acceptance
Agree radius, travel, speed, acceleration, temperature, load, cycle counting and target cycles. Check continuity, shorts, sheath damage and kinking; publish results for the tested construction and conditions.
Custom & supply
Custom cable production and supply for your project
We manufacture custom cables to the agreed project specification. Share your drawing, operating conditions, quantity and delivery destination so we can define the construction, samples and supply terms.
Discuss your specification- Conductor and format
- Specify nominal size, strand build and whether you need a single-core wire or a sheathed cable.
- Dimensions and terminations
- Provide the outside-diameter limit, core arrangement and terminal or connector drawing.
- Motion and verification
- State radius, travel, frequency, tensile load, temperature and required tests or life.
Packing & delivery
Supply lengths, labels and delivery requirements
Include the required length per coil or reel, order quantity, labelling and delivery destination. Packing method, minimum order quantity and lead time are confirmed for the project.
See packing & delivery information
Free samples
Free Samples of Extra-Flexible Silicone Wires & Cables
We offer free samples.
Extra-Flexible Silicone Wires & Cables: questions before ordering.
What conductor details should I confirm?
Confirm nominal size, strand count and strand diameter for the selected wire. One documented extra-flexible single-core example is 18 AWG with 150/0.08 construction and a 2.3 mm finished outside diameter.
Can I use the fixed-installation radius for repeated movement?
The extra-flexible sheathed sheet lists 6 × cable diameter under fixed installation. It does not establish a continuous-motion bend radius. Have the moving installation reviewed separately.
How is a repeated-motion life target established?
Set the equipment duty and required cycle count, then agree a test with the radius, travel, speed, acceleration, temperature and tensile load recorded. The tested construction and acceptance checks accompany any released life result.
CABLE SELECTION & QUOTATIONS
Send your drawing or cable requirements.
You do not need an ANYANG model number. Share a drawing, existing cable marking or a description of your equipment.
Include the quantity you need and any known dimensions, voltage, temperature or movement requirements. We will check the specification with you.
