Unscreened
12 AWG Duplex Silicone Wire
- Core sizes
- 12 AWG
Silicone wire & cable / Flat Silicone Cables
Flat Silicone Cables
Separable twin-core and connector-controlled flat cable designs.
Choose a joined silicone-insulated twin lead for a two-wire connection, a flat sheathed assembly, or a ribbon design matched to a connector. We develop the conductor arrangement, profile and materials around the equipment drawing.
- Joined twin-core options
- Width, thickness & pitch
- Termination fit
Browse the range
Browse Flat Silicone Cables
Compare the construction and the listed core sizes. Open a product for its dimensions and specification.
Custom flat designs follow the agreed profile and connector requirements. The design examples are not a common rating or a standard dimension table for every listed product.
2 products
Cable construction
Silicone Ribbon Cable
- Core sizes
- Ask about the required size
Need another construction?
Share the materials, dimensions and operating conditions required by your equipment.
Discuss a custom cable →Inside the factory
Silicone Extrusion and Cable Manufacturing Support
See the silicone processing area and inspection work at ANYANG. Discuss the construction and operating requirements for your selected cable.
Inside silicone processing
Silicone extrusion and rubber mixing equipment
Our production equipment includes silicone extruders and silicone rubber mixing machines.
Our process, quality inspection and custom development teams can review your specification and project requirements.
Why ANYANG
Why Choose ANYANG for Custom Cable Supply?
Factory facilities, drawing review and visible inspection work support a clear cable specification.
Silicone processing facilities
Silicone extrusion and rubber mixing equipment are part of our production facilities. Take a closer look at the workshop.
Inside the factoryFlat Profile and Connector Review
Profile and core layout, Connections and separation, Routing and supply: discuss these requirements with our process and custom development teams.
Custom cable supportConductor Testing and Wire Inspection
View conductor-resistance testing and wire first-inspection work from our factory. Confirm the inspection and documentation requirements for the cable you select.
Quality & testing
Geometry
Flat Silicone Cable Designs: Twin Leads and Ribbon
The following configurations are custom design starting points. Dimensions, electrical ratings and sample acceptance are established for the selected project.
| Design route | Concrete starting point | What controls the design |
|---|---|---|

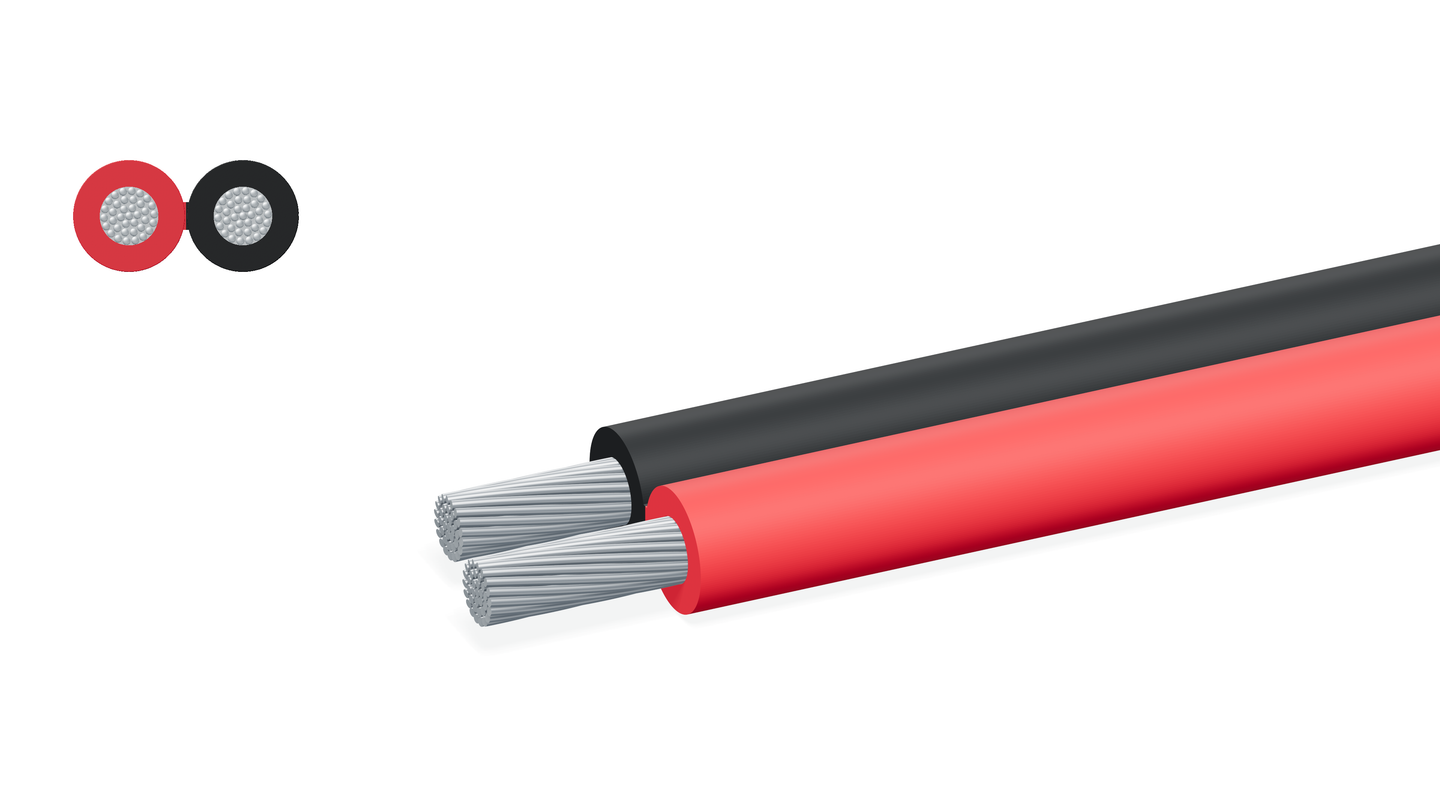

| Separable twin-core lead | Two parallel silicone-insulated conductors joined by a separating web; 2 × 0.5 mm² or 2 × 0.75 mm² are practical project starting sizes. | Overall width and thickness, conductor identification, web separation and stripped-end lengths. |
| Flat sheathed assembly | Parallel insulated cores with a common silicone sheath; screening can be specified as a separate layer. | Core count × cross-section, layer materials, width, thickness and tolerances. |
| Connector-controlled ribbon | For an IDC project, a 28 AWG design with 1.00 mm or 1.27 mm conductor pitch is a concrete interface starting point. | Match conductor count, pitch and insulation envelope to the connector part number, then check the cable/connector sample assembly. |
Dimension checklist
Flat Cable Width, Thickness and Conductor Pitch
Use a dimensioned cross-section rather than converting a round-cable diameter into flat thickness.
Overall Width, Thickness and Tolerances
Give the permitted envelope and tolerances at the narrowest equipment opening.
Conductor Count, Size and Pitch
Show conductor sizes, number of cores, spacing and identification in the drawing.
Bend Direction and Movement Duty
Show the routing and bend direction. For moving installations, include radius, travel and movement frequency for review.
Core Separation and Connector Termination
Include the connector or terminal specification and any requirement to separate individual cores at the cable ends.
Custom review
Custom Flat Cable Drawings and Sample Requirements
Factory silicone-sheathed documentation lists flat-form customization. Turn the selected format into a dimensioned drawing and sample plan.
Equipment Layout and Electrical Duty
Provide the profile drawing, electrical duty, thermal conditions and order quantity.
Layer Materials and Profile Tolerances
Confirm the material of each insulation and sheath layer, core arrangement, dimensional tolerances and operating conditions.
Cable Samples and Order Requirements
Agree the drawing and any sample verification before confirming supply length, packing and delivery details.
Custom & supply
Custom cable production and supply for your project
We manufacture custom cables to the agreed project specification. Share your drawing, operating conditions, quantity and delivery destination so we can define the construction, samples and supply terms.
Discuss your specification- Profile and core layout
- Provide overall width, thickness, tolerances, core count, conductor size and spacing.
- Connections and separation
- Include the connector or terminal drawing and any requirement to separate the cores.
- Routing and supply
- State bend direction, movement, thermal and electrical duty, lengths and quantity.
Packing & delivery
Supply lengths, labels and delivery requirements
Include the required length per coil or reel, order quantity, labelling and delivery destination. Packing method, minimum order quantity and lead time are confirmed for the project.
See packing & delivery information
Free samples
Free Samples of Flat Silicone Cables
We offer free samples.
Flat Silicone Cables: questions before ordering.
What is a practical twin-core silicone design?
Start with two stranded conductors, each silicone-insulated and joined by a separating web. A custom brief can use 2 × 0.5 mm² or 2 × 0.75 mm², with overall dimensions, identification and separation length chosen for the connection.
Can the conductor pitch be specified for a connector?
Yes. For example, 1.00 mm and 1.27 mm pitch are concrete IDC design directions. Provide the connector part number, core count and cable-envelope limits so the proposed dimensions and assembly can be checked.
Will it fit an IDC connector?
Confirm compatibility using the connector specification and the agreed cable drawing. Include the connector part number, contact pitch and cable-thickness limits.
CABLE SELECTION & QUOTATIONS
Send your drawing or cable requirements.
You do not need an ANYANG model number. Share a drawing, existing cable marking or a description of your equipment.
Include the quantity you need and any known dimensions, voltage, temperature or movement requirements. We will check the specification with you.
