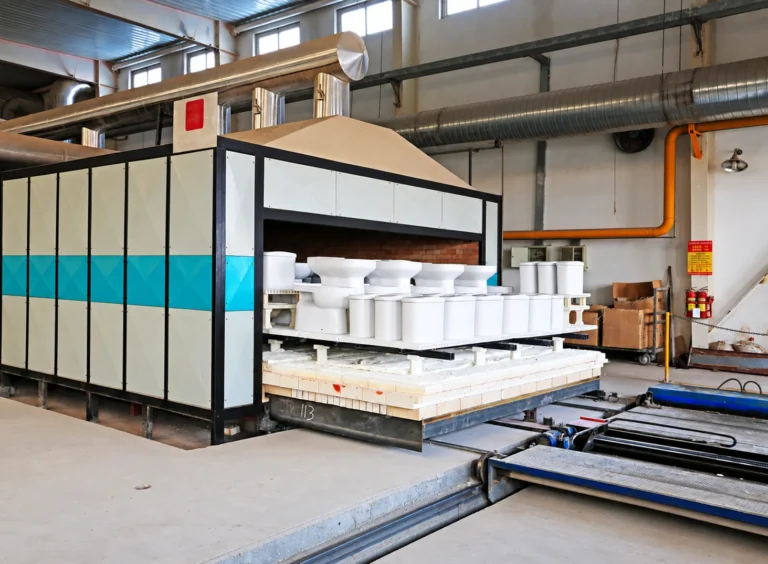

THERMAL LOCATION
Kiln-adjacent equipment wiring
Identify the electrical connection outside the process area. Give the wire-route temperature and protection details.
Typical application; check the location
APPLICATION / Ceramics equipment

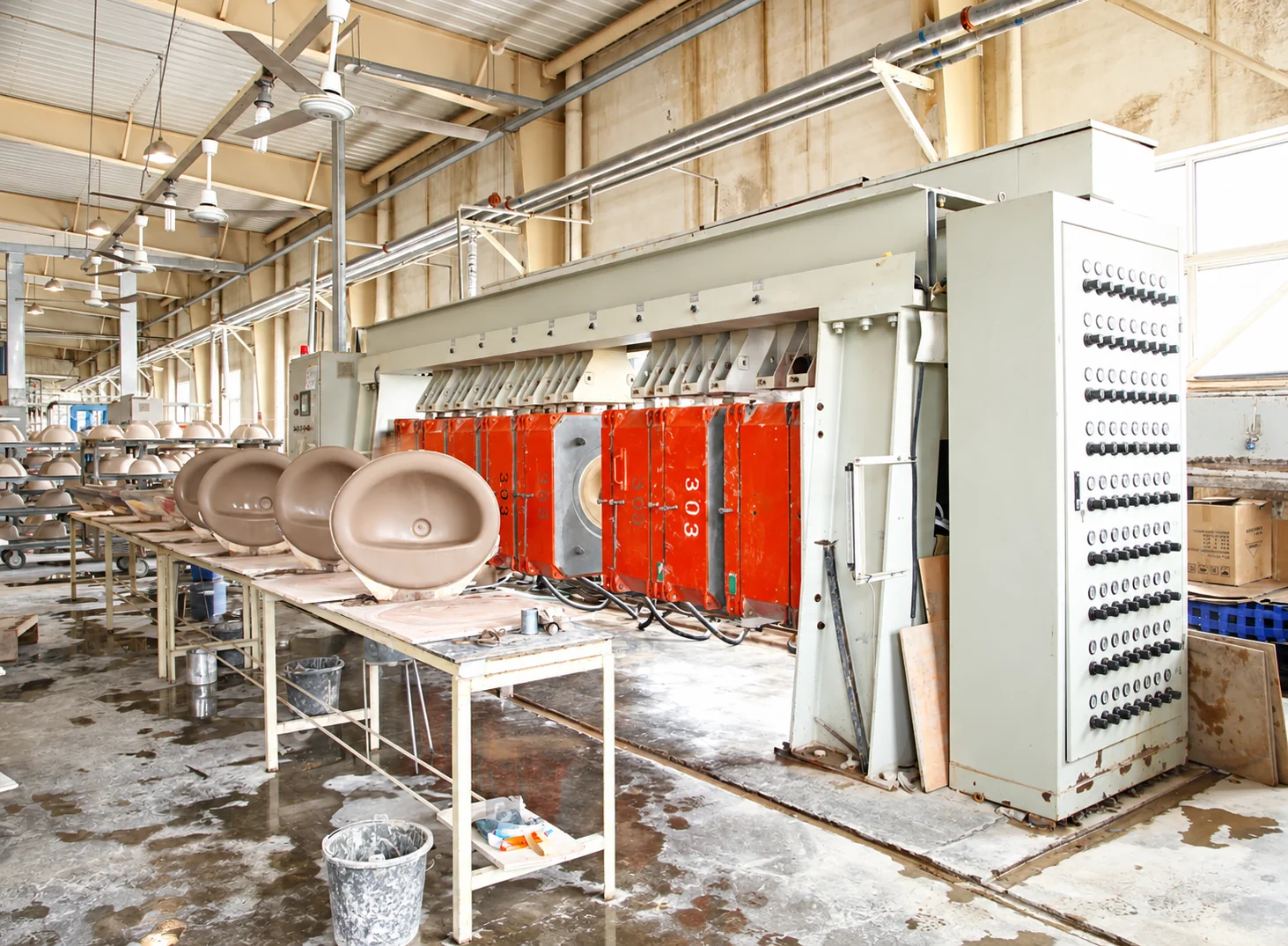

Silicone Cable for
Ceramics Equipment
Wiring for kilns and ceramics equipment.
We start from AGR silicone single-core wire: fine-stranded tinned copper with silicone rubber insulation, 0.3 mm² to 16 mm², rated −60 °C (−76°F) to +180 °C (356°F) continuous and +200 °C (392°F) short-term in fixed installation.
AT A GLANCE
Ceramics equipment wiring at a glance
Each ceramics-equipment connection and the silicone cable we start from.
| Connection | Cable construction | Key point |
|---|---|---|
| Kiln-adjacent equipment wiring | AGR silicone single-core wire | Outside the firing chamber; +180 °C (356°F) continuous at the wire |
| Equipment internal leads | AGR silicone single-core wire, 0.3 mm² to 16 mm² | Colour identification; no outer sheath |
| Control and drive interfaces | Multicore or screened silicone cable, built to your drawing | Specified separately from single-core leads |
CONNECTION TASKS
Ceramics equipment wiring
AGR silicone wire is used in the ceramics industry. Keep the wire outside the firing chamber and within its temperature limits.
SINGLE-CORE CONNECTIONS
Equipment internal leads
Specify wire size, insulation diameter, colour identification and terminal arrangement for the equipment drawing.
Standard AGR construction
SEPARATE CIRCUITS
Control and drive interfaces
Identify signal, power or drive duty. Submit screened, multicore and moving connections as separate requirements.
Built to your drawing
SELECTION CHECKS
Operating conditions to specify
Include these conditions with your enquiry so we can select the right cable.
Thermal boundary
The wire route relative to the kiln, with its actual local temperature and duration, sets the thermal requirement.

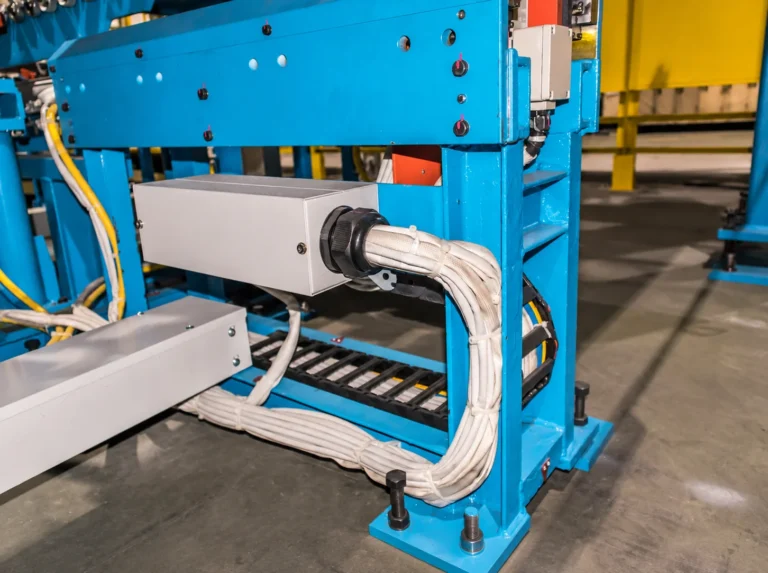

Enclosure & protection
The covered route, supports, ventilation and any mechanical exposure decide how the wire is protected.
Circuit details
Conductor size, voltage, current, terminals and the required product documents complete the specification.
OUR CABLE
Silicone cable construction
Construction and technical data.
AGR / SINGLE-CORE WIRE
AGR silicone-insulated single-core wire
- Temperature range
- −60 °C (−76°F) to +180 °C (356°F) continuous; +200 °C (392°F) short-term (fixed installation)
- Continuous / short-term
- +180 °C (356°F) continuous, +200 °C (392°F) short-term
- Conductor
- Fine-stranded tinned copper, IEC 60228 Class 5
- Insulation
- Silicone rubber; no outer sheath
- Sizes
- 0.3 mm² to 16 mm²
- Outer diameter
- 1.8 mm (0.3 mm²) to 8.0 mm (16 mm²)
- Rated voltage
- U0/U 300/500 V from 0.5 mm²; 300/300 V below 0.5 mm²
- Minimum bend radius
- 6 × cable diameter (fixed installation)
- Ventilation
- Provide appropriate ventilation above +100 °C (212°F)
APPLICATION LIMITS
Kiln wiring: location and temperature
Cable temperature limits apply at the installed wire position, not to the kiln's firing temperature.
- Process specification
- Describe the equipment and the operating cycle as background.
- Wire environment
- Provide the conditions experienced by the wire at its installed position.
- Cable specification
- Confirm the selected model, construction and acceptance requirements.
TECHNICAL DOCUMENTS
Datasheet & project checklist
Product datasheet and quotation checklist.

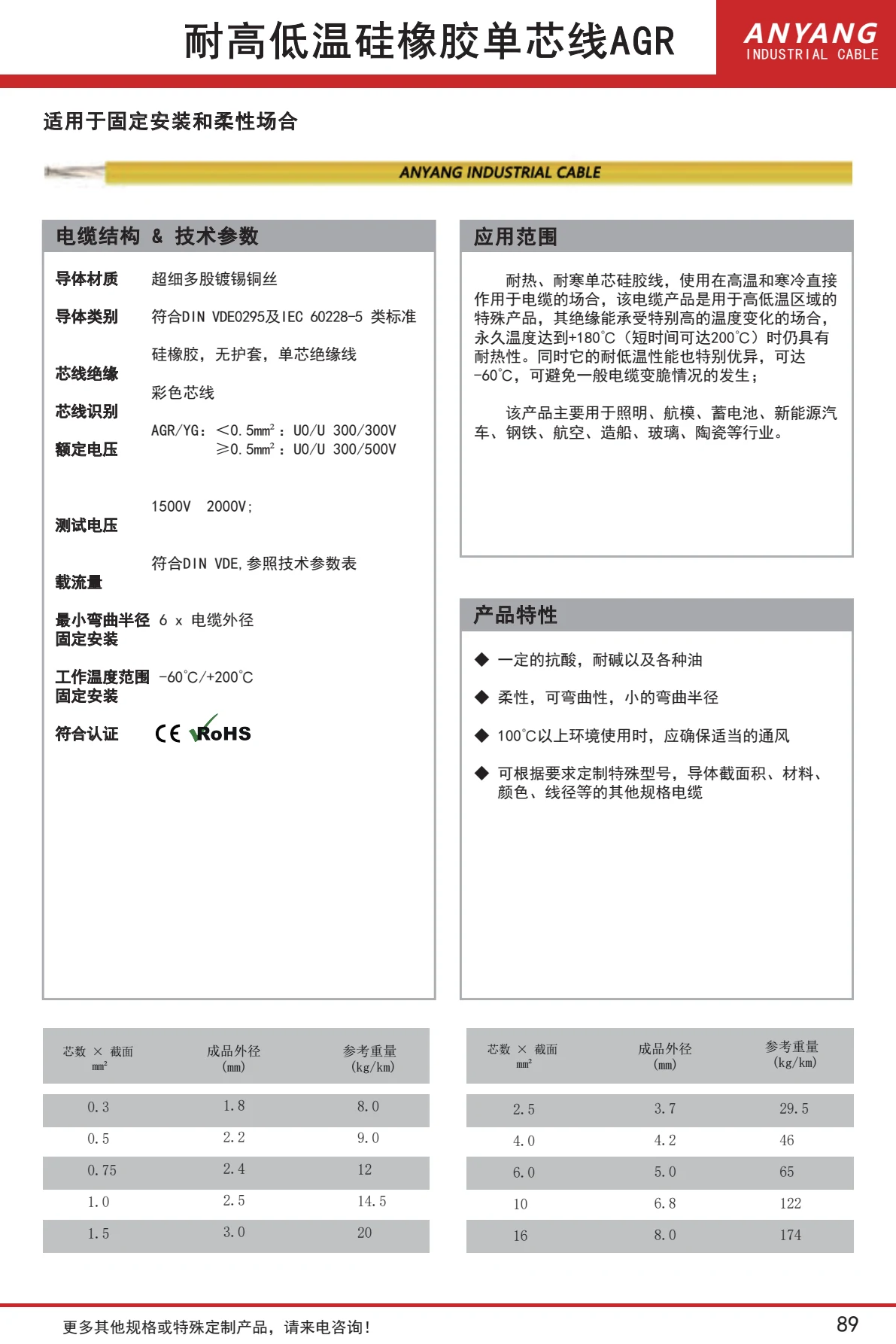

AGR silicone-insulated single-core wire
Construction, applications and size table.
Certification is model-specific; the marks on a datasheet do not replace a certificate.Ceramics equipment brief
Send a drawing or existing cable specification with the following information.
What information helps?
- Equipment layout with the wire route marked
- Local temperature, exposure duration and ventilation
- Required single-core or cable construction and terminations
- Circuit requirements, quantity and acceptance documentation
BEFORE YOU SPECIFY
Frequently asked questions
Can this wire be installed in the firing chamber?
Firing-chamber suitability is not specified in the AGR datasheet. The wire is rated up to +180 °C (356°F) continuously and +200 °C (392°F) short-term at its installed position.
Are all ceramics-equipment connections single core?
No. AGR is a single-core wire. Multicore and screened connections use different cable constructions.
Which AGR sizes suit ceramics-equipment leads?
AGR is listed from 0.3 mm² to 16 mm², with outside diameters from 1.8 mm to 8.0 mm. Sizes from 0.5 mm² are rated U0/U 300/500 V.
CUSTOM SUPPORT & ENQUIRY
Request a silicone cable quote
Need a custom size or construction? Send your drawing, operating conditions and required quantity for a quotation.
