POWER CIRCUITS
Equipment power connections
State the equipment rating, conductor arrangement, route and terminations. Keep individual equipment wiring separate from plant distribution.
Confirmed with your quotation

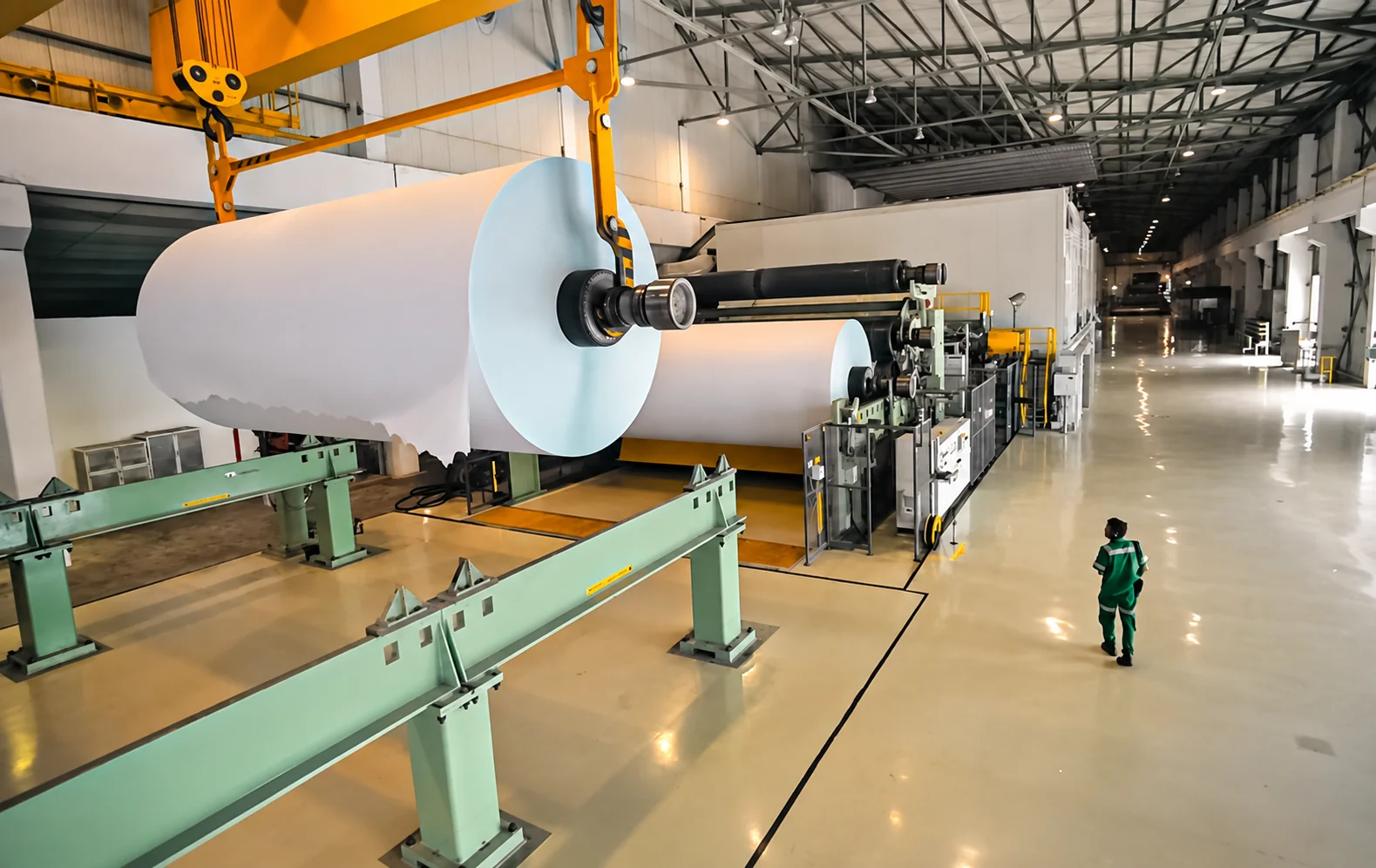

APPLICATION / Paper & paper processing
Silicone Cable for
Paper Processing Equipment

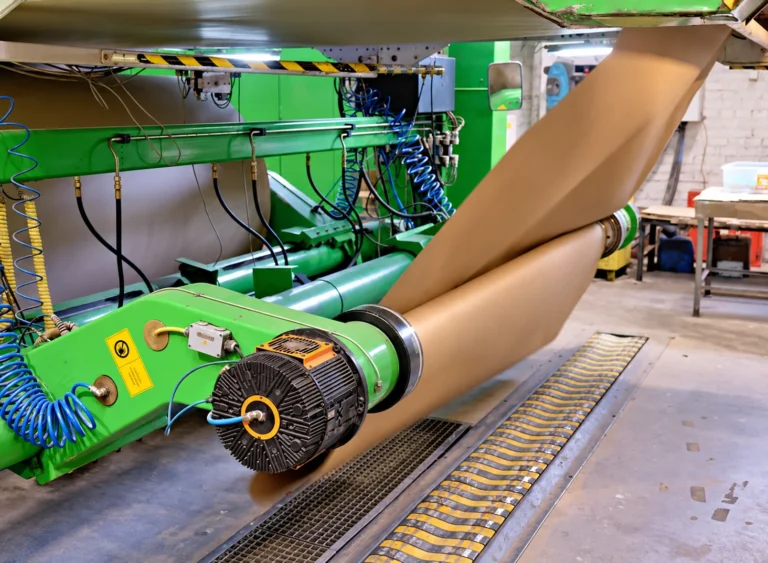

Wiring for paper-processing machines.
For equipment power and control connections, we start from YGG silicone-sheathed cable: tinned-copper cores under a silicone sheath, 2 × 0.14 mm² to 5 × 10 mm² with up to 20 cores, rated −60 °C (−76°F) to +180 °C (356°F) continuous and +200 °C (392°F) short-term.
AT A GLANCE
Paper machine wiring at a glance
Each paper-machine connection and the silicone cable we start from.
| Connection | Cable construction | Key point |
|---|---|---|
| Equipment power connections | YGG silicone-sheathed cable | Plant distribution cables specified separately |
| Control connections | YGG, or shielded YGGP where screening is required | Up to 20 cores; core identification to your diagram |
| Heat-exposed sections | YGG silicone-sheathed cable | +180 °C (356°F) continuous; moisture and chemicals reviewed separately |
CONNECTION TASKS
Paper machine wiring
YGG is a silicone-sheathed cable for equipment power, control and connection wiring. Plant distribution uses separate cable specifications.
CONTROL CIRCUITS

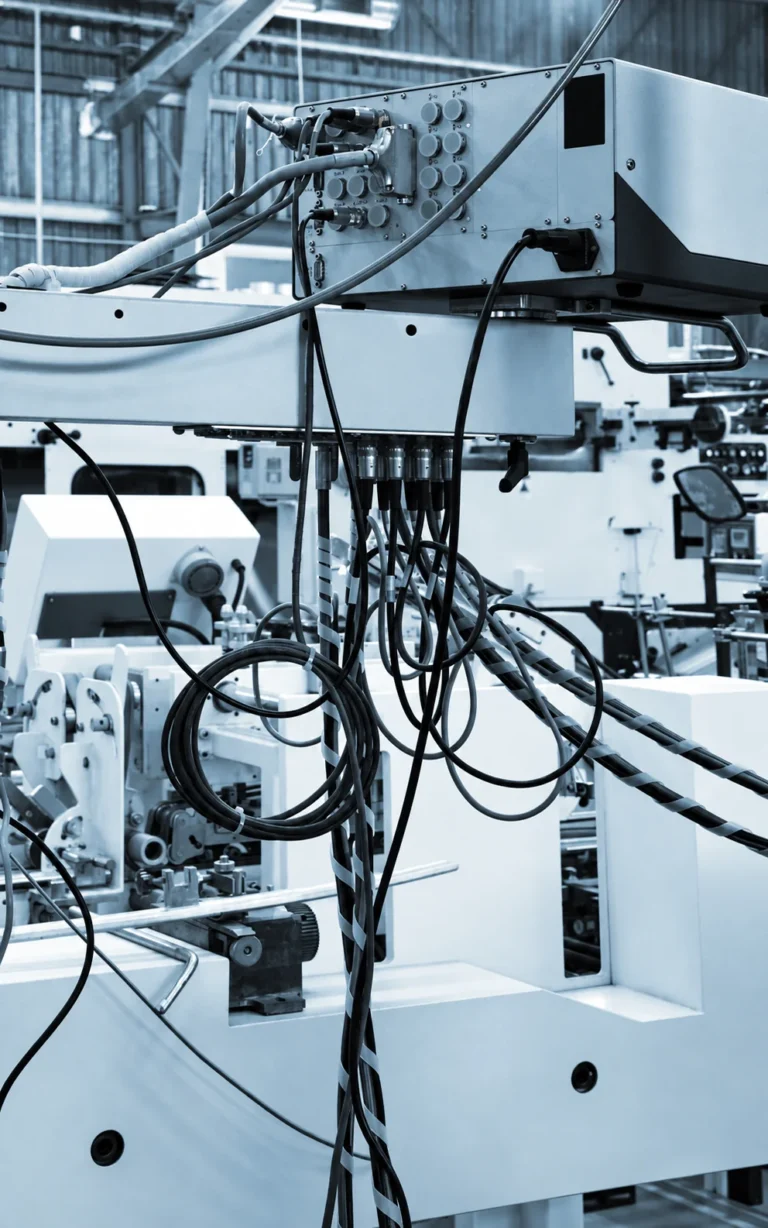

Control connections
Provide the control diagram, core identification and screening requirements for the chosen route.
General equipment wiring
LOCAL CONDITIONS
Heat-exposed sections
Mark any heated location and provide cable-route temperature and ventilation. Describe moisture or chemical exposure separately.
Checked for your conditions
SELECTION CHECKS
Operating conditions to specify
Include these conditions with your enquiry so we can select the right cable.
Circuit separation
Power, control, instrumentation and communication requirements are specified separately.
Process exposure
The conditions at the cable position, including water, process media or cleaning contact, set the exposure.
Installation & service
Fixed and moving sections, access points and replacement lengths decide the installation design.
OUR CABLE
Silicone cable construction
Construction and technical data.
YGG / EQUIPMENT CONNECTION CABLE
YGG silicone-sheathed cable
- Temperature range
- −60 °C (−76°F) to +180 °C (356°F) continuous; +200 °C (392°F) short-term (fixed installation)
- Continuous / short-term
- +180 °C (356°F) continuous, +200 °C (392°F) short-term
- Conductor
- Fine-stranded tinned copper, IEC 60228 Class 5/6
- Core insulation
- Silicone rubber or fluoropolymer
- Outer sheath
- Silicone rubber; black, blue, grey or red
- Sizes
- 2 × 0.14 mm² to 5 × 10 mm², up to 20 cores
- Outer diameter
- 4.1 mm (2 × 0.14 mm²) to 19.3 mm (5 × 10 mm²)
- Rated voltage
- U0/U 300/300 V below 0.5 mm²; 300/500 V for 0.5–4 mm²; 450/750 V heavy version from 4 mm²
- Minimum bend radius
- 6 × cable diameter (fixed installation)
- Installation
- Fixed, or occasional movement without pulling force; not for direct burial
APPLICATION LIMITS
Paper machine circuits & cable types
Use the equipment list to define the scope of each connection.
- Power and control
- Review the selected equipment cable against the circuit drawing.
- Instrumentation
- Supply signal and screening requirements; do not assume a generic control cable is sufficient.
- Plant networks
- Communication, drive and distribution cabling require their own product data.
TECHNICAL DOCUMENTS
Datasheet & project checklist
Product datasheet and quotation checklist.

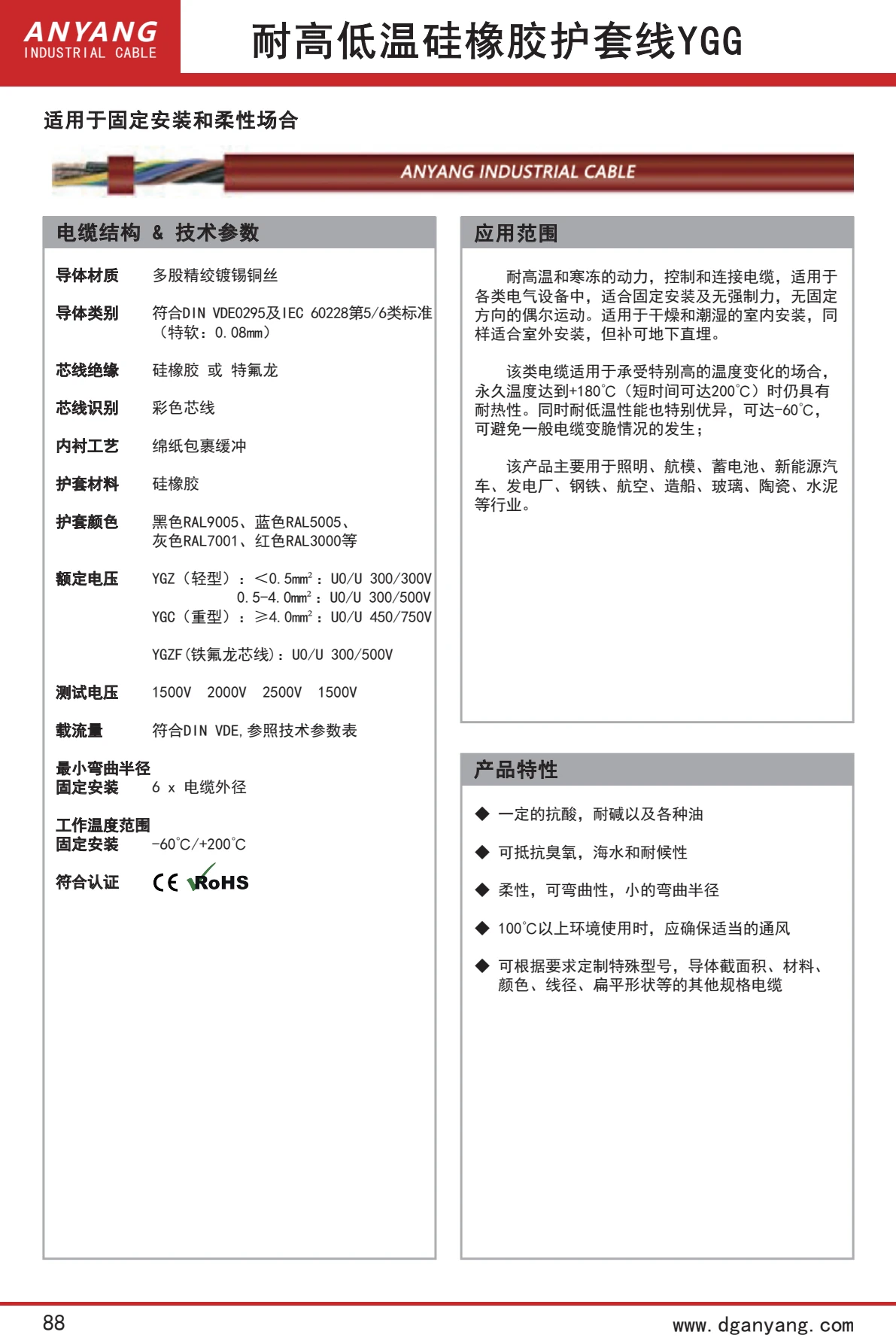

YGG silicone-sheathed cable
Construction, applications and size table.
Certification is model-specific; the marks on a datasheet do not replace a certificate.Paper & paper processing brief
Send a drawing or existing cable specification with the following information.
What information helps?
- Equipment list and circuit functions
- Power/control drawings, core sizes and cable lengths
- Local heat, water, chemicals and cleaning conditions
- Movement, screening and required acceptance documents
BEFORE YOU SPECIFY
Frequently asked questions
Does this page cover all cabling in a paper mill?
This page covers equipment power and control wiring. Medium-voltage distribution, network and drive cables use separate specifications.
Is resistance to process water or chemicals confirmed?
The YGG datasheet describes limited resistance to acids, alkalis and oils, but does not give compatibility results for specific paper-process fluids.
How many cores are available in YGG?
From 2 cores up to 20 cores, in sizes from 0.14 mm² to 10 mm², with outside diameters from 4.1 mm to 19.3 mm.
CUSTOM SUPPORT & ENQUIRY
Request a silicone cable quote
Need a custom size or construction? Send your drawing, operating conditions and required quantity for a quotation.
