APPLICATION / PACKAGING MACHINERY

Silicone Cable for
Packaging Machinery

Q: Can the cable be washed down with cleaning agents?

The silicone sheath is made to be washed and disinfected. Resistance to your specific cleaning agents is confirmed by test before selection.

Wiring for filling, sealing and packaging machines.

For filling lines, we start from our food-equipment silicone cable: fine-stranded tinned copper with silicone insulation and sheath, 300/500 V, rated −60 °C (−76°F) to +180 °C (356°F) continuous and +200 °C (392°F) short-term, from 2 × 0.2 mm² to 10 × 2.5 mm².

Explore connection tasks ↓Discuss your equipment ↗

Illustrative packaging equipment handling a cardboard carton — Packaging equipment · illustrative scene, not an ANYANG customer installation.

AT A GLANCE

Packaging machine wiring at a glance

Each packaging-machine connection and the silicone cable we start from.

Connection	Cable construction	Key point
Filling production lines	Food-equipment silicone cable	300/500 V; 2 to 10 cores
Forming & sealing equipment	Selected per sealing station	Temperature at each station confirmed separately
Carton handling & conveying	Food-equipment silicone cable for fixed wiring	Minimum bend radius when moved: 10 × outside diameter. No continuous-flex cycle-life rating is given.

INDUSTRY REQUIREMENTS

Packaging machine wiring conditions

Packaging-machine connections include filling lines, sealing stations and material handling.

Temperature at the process

Heat-exposed connections and ordinary machine wiring need separate specifications, based on the temperature at the cable route and the exposure time.

Machine movement

Conveying and handling bring motion into the selection. Fixed installation, repeated bending and twisting are different duties—not interchangeable ratings.

Cleaning & installation zone

Food-packaging environments can involve moisture and cleaning agents. The cleaning regime and any food-contact requirement depend on the installation zone.

EQUIPMENT APPLICATIONS

Packaging equipment applications

This page presents the listed cable for filling-line wiring; sealing and moving-machine connections have separate temperature and motion requirements.

Beverage production equipment and filling-line conveyors — Beverage production-line equipment.

FILLING & DOSING

Filling production lines

Filling lines are a typical application of our food-equipment silicone cable. Review the exact connection and installation conditions before specifying a cable.

Typical application

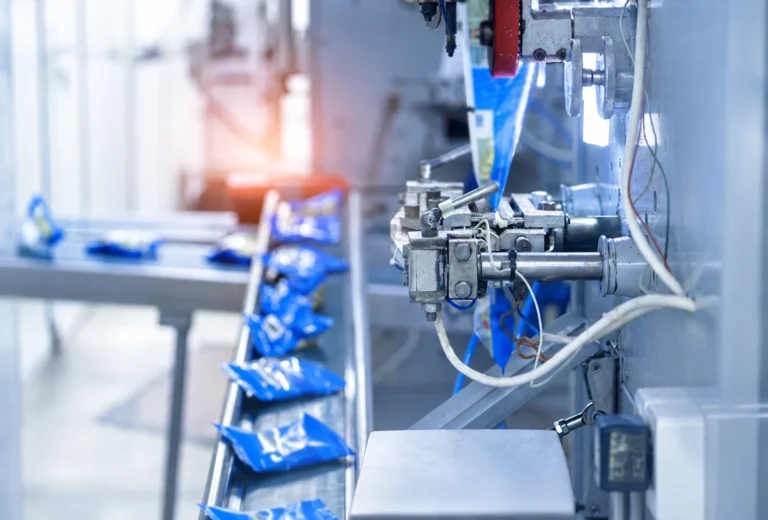

Forming and sealing mechanism on an automated packaging machine — Illustrative equipment scene.

FORMING & SEALING

Forming & sealing equipment

Form-fill-seal and tray-sealing machinery are distinct packaging applications. Cable selection needs to account for the particular sealing station and the location of the connection.

Equipment-specific selection

SECONDARY PACKAGING

Carton handling & conveying

Carton packing, conveying and palletising are further packaging operations. Fixed wiring and moving connections should be specified separately.

Equipment-specific selection

RELATED CABLE

Silicone cable for
filling-line wiring.

Construction and key figures of the cable we start from.

OUR CABLE / FILLING LINES

Food-equipment silicone cable

Temperature: −60 °C (−76°F) to +180 °C (356°F) continuous, +200 °C (392°F) short-term
Minimum installation temperature: −20 °C (−4°F)
Conductor: Fine-stranded tinned copper
Insulation: Silicone rubber
Outer sheath: Silicone rubber
Reinforcement: Optional fibre braid
Sizes: 2 × 0.2 mm² to 10 × 2.5 mm² (2 to 10 cores)
Outer diameter: 5.1 mm to 18.3 mm
Rated voltage: 300/500 V
Bend radius: 6 × outside diameter fixed; 10 × when moved

It is not offered for direct food contact; suitability for your machine is confirmed with your drawing.

TECHNICAL DOCUMENTS

Datasheet & project checklist

Review the datasheet for construction and sizes. Use your machine drawing to define the connection requirements.

PDF · 2 PAGES · CHINESE

Product datasheet

Food-equipment silicone cable: construction, typical applications and size table.

Certification is model-specific; the marks on a datasheet do not replace a certificate.

FOR YOUR TECHNICAL ENQUIRY

Machine connection brief

Have a drawing or an existing cable reference? Include it with the equipment function and required quantity.

What information helps?

Connection drawing and electrical duty
Temperature, cleaning and installation location
Fixed or moving routing and available space
Required documents, quantity and delivery date

BEFORE YOU SPECIFY

Frequently asked questions

Is the cable suitable for direct food contact?

No. It is for equipment wiring and is not offered for direct food contact.

Can the cable be washed down with cleaning agents?

The factory datasheet describes the sheath as washable and suitable for disinfection. Compatibility with a specific cleaning agent, concentration and temperature requires separate test data.

Which sizes are listed?

From 2 × 0.2 mm² to 10 × 2.5 mm², with 2 to 10 cores and an optional fibre braid.

CUSTOM SUPPORT & ENQUIRY

Request a silicone cable quote

Need a custom size or construction? Send your drawing, operating conditions and required quantity for a quotation.
