Metallic screen
Shielded Multicore Silicone Cable
- Core sizes
- 0.5 mm² / 1.0 mm² / 1.5 mm² / 2.5 mm² / 4.0 mm² / 6.0 mm² / 10.0 mm²
Silicone wire & cable / Shielded Silicone Cables
Shielded Silicone Cables
An overall copper-braid screen for silicone equipment connections.
Build the screened connection around tinned-copper braiding, the selected core insulation and a silicone outer sheath. Specify the braid coverage and the equipment termination together, then verify the agreed electrical requirements.
- Screen material & position
- Termination arrangement
- Circuit & dimensions
YGGP reference illustration; core insulation is version-specific. Confirm the selected product drawing.
Browse the range
Browse Shielded Silicone Cables
Compare the construction and the listed core sizes. Open a product for its dimensions and specification.
2 products
Need another construction?
Share the materials, dimensions and operating conditions required by your equipment.
Discuss a custom cable →Inside the factory
Silicone Extrusion and Cable Manufacturing Support
See the silicone processing area and inspection work at ANYANG. Discuss the construction and operating requirements for your selected cable.
Inside silicone processing
Silicone extrusion and rubber mixing equipment
Our production equipment includes silicone extruders and silicone rubber mixing machines.
Our process, quality inspection and custom development teams can review your specification and project requirements.
Why ANYANG
Why Choose ANYANG for Custom Cable Supply?
Factory facilities, drawing review and visible inspection work support a clear cable specification.
Silicone processing facilities
Silicone extrusion and rubber mixing equipment are part of our production facilities. Take a closer look at the workshop.
Inside the factoryScreen Coverage and Termination Review
Screen arrangement, Connections and dimensions, Electrical duty and supply: discuss these requirements with our process and custom development teams.
Custom cable supportConductor Testing and Wire Inspection
View conductor-resistance testing and wire first-inspection work from our factory. Confirm the inspection and documentation requirements for the cable you select.
Quality & testing
Screen construction

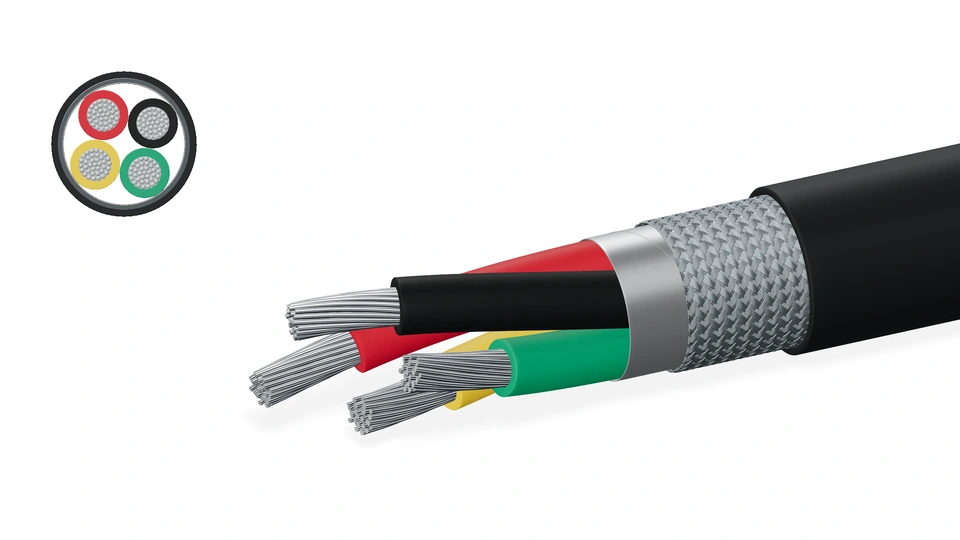

YGGP Shielded Silicone Cable Construction
The factory YGGP layer arrangement provides the base construction. The coverage and EMC criteria below are project design targets rather than ratings for every catalogue item.
Core Insulation, Count and Conductor Size
The YGGP sheet lists silicone or “Teflon” core insulation. Confirm the selected version, core count and conductor size.
Overall tinned-copper braid
Use the YGGP tissue-paper and overall tinned-copper-braid arrangement as the starting point. An 85% optical-coverage target is a concrete option for the custom brief; verify the achieved coverage on the agreed construction.
Silicone Sheath and Finished Diameter
A silicone outer sheath covers the screened assembly. Use the selected size table for finished diameter and the agreed cable-entry limits.
Screened or unscreened
Screen Coverage, Termination and Electrical Tests
Define what the screen must do and how it connects to the equipment.
| Design choice | Concrete starting point | Verification or interface |
|---|---|---|
| Overall braid | Tinned-copper braid beneath a silicone sheath; 85% optical coverage as a project target. | Confirm braid wire/build, measured coverage, finished diameter and stripping length. |
| Screen connection | Plan a circumferential screen contact through a suitable EMC gland or connector. | Agree bonding at each end with the equipment design, including grounding and potential-difference conditions. |
| Electrical acceptance | Use coverage inspection plus the required transfer-impedance or screening-attenuation measurement. | State the method, frequency range and pass limit; optical coverage alone is not a system EMC result. |
Installation brief
EMC Screen Connections and Cable Routing
Include the complete connection arrangement when requesting a screened cable.
Screen Bonding and Termination
Use the equipment drawing to define circumferential braid contact, the EMC gland or connector and bonding at each end. Keep the termination arrangement part of the system review.
Finished Diameter and Bend Space
Check the finished diameter, stripping arrangement and permitted route at the connector or gland.
Screening Tests and Acceptance Criteria
Specify the test method, frequency range or protocol requirement if relevant. Coverage, attenuation and system EMC results must be confirmed for the selected construction.
Custom & supply
Custom cable production and supply for your project
We manufacture custom cables to the agreed project specification. Share your drawing, operating conditions, quantity and delivery destination so we can define the construction, samples and supply terms.
Discuss your specification- Screen arrangement
- Specify screen material, layer position and the required screening verification.
- Connections and dimensions
- Provide core count, conductor size, outside-diameter limit and screen termination drawings.
- Electrical duty and supply
- Identify relevant interference sources, circuit requirements, sample needs and quantity.
Packing & delivery
Supply lengths, labels and delivery requirements
Include the required length per coil or reel, order quantity, labelling and delivery destination. Packing method, minimum order quantity and lead time are confirmed for the project.
See packing & delivery information
Free samples
Free Samples of Shielded Silicone Cables
We offer free samples.
Shielded Silicone Cables: questions before ordering.
What screen is documented for YGGP?
The factory YGGP construction uses an overall tinned-copper braid under the silicone outer sheath. For custom projects, an 85% optical-coverage target can be included in the specification, with achieved coverage verified on the agreed cable.
What information is needed for screen termination?
Include the equipment connection drawing, connector or gland details and the required screen connection at each end. Review the termination arrangement with the system design.
Does the screen establish a data-protocol rating?
No transmission bandwidth or data-protocol rating is established by the reviewed YGGP sheet. Provide the protocol and electrical requirements for a separate suitability check.
Does every screened version have silicone core insulation?
The YGGP factory sheet lists silicone or “Teflon” core insulation. Confirm the selected insulation version rather than inferring it from the outer sheath.
CABLE SELECTION & QUOTATIONS
Send your drawing or cable requirements.
You do not need an ANYANG model number. Share a drawing, existing cable marking or a description of your equipment.
Include the quantity you need and any known dimensions, voltage, temperature or movement requirements. We will check the specification with you.
