Unscreened
2-Core Silicone Cable – Extra-Flexible Tinned Copper
- Core sizes
- 0.5 mm² / 0.75 mm² / 1 mm² / 1.5 mm² / 2.5 mm² / 4 mm²
Silicone wire & cable / Silicone-Sheathed Cables
Silicone-Sheathed Cables
Choose an all-silicone or screened sheathed cable for your equipment.
Start with a tinned-copper conductor, the required core insulation and a silicone outer sheath. Choose an unscreened YGG construction, a copper-braid-screened YGGP construction or a Class 6 extra-flexible sheathed design to suit the connection.
- Core insulation & sheath
- Core count & finished size
- Heat & movement

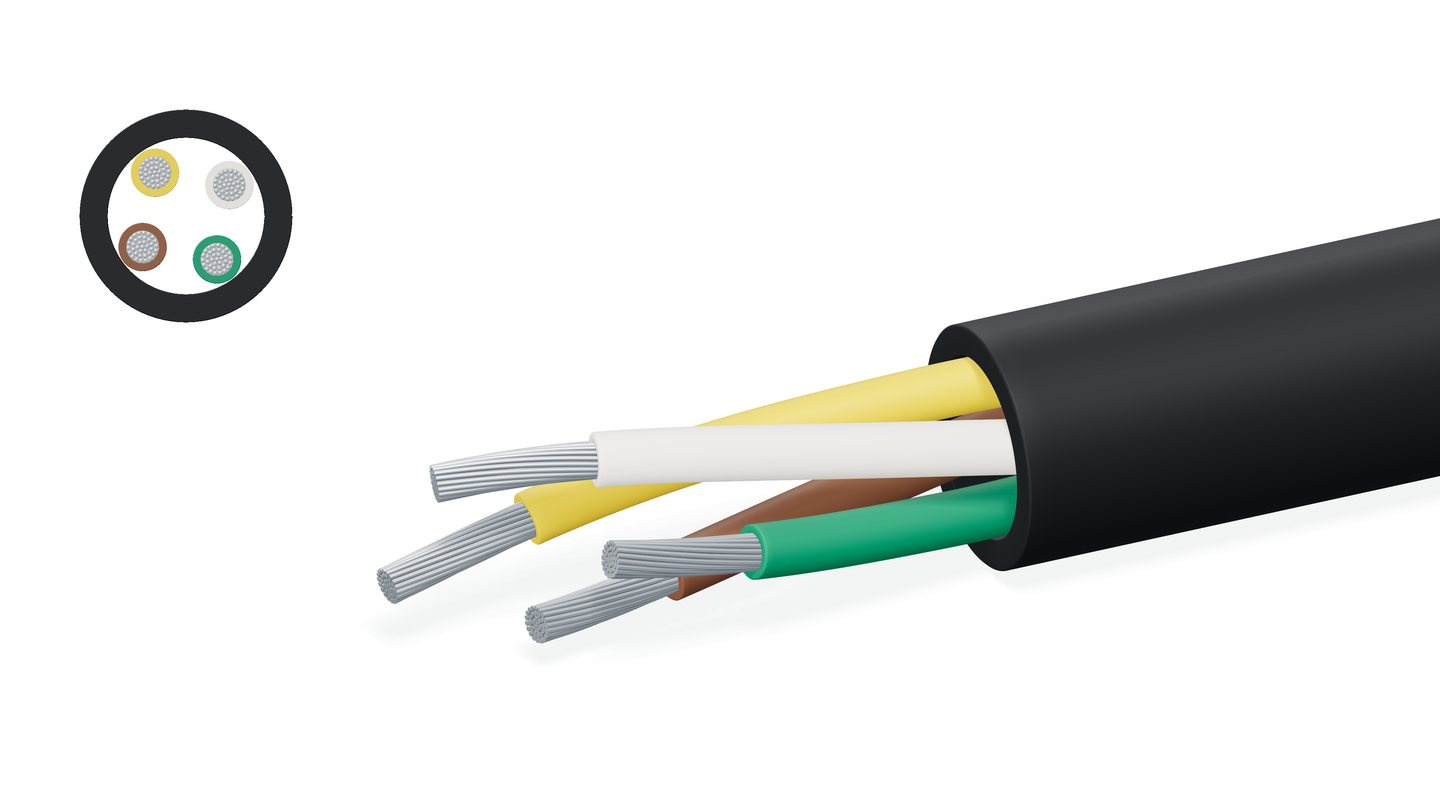

Reference construction illustration. Confirm the materials, layers and dimensions in the selected product drawing.
Browse the range
Browse Silicone-Sheathed Cables
Compare the construction and the listed core sizes. Open a product for its dimensions and specification.
10 products
Unscreened
3-Core Silicone Cable
- Core sizes
- 0.5 mm² / 0.75 mm² / 1 mm² / 1.5 mm² / 2.5 mm² / 4 mm²
Unscreened
4-Core Silicone Cable – Extra-Flexible Tinned Copper
- Core sizes
- 0.5 mm² / 0.75 mm² / 1 mm² / 1.5 mm² / 2.5 mm² / 4 mm²
Unscreened
5-Core Silicone Cable – 5 × 0.3 mm², 600 V
- Core sizes
- 0.3 mm²
Unscreened
6-Core Extra-Flexible Silicone Cable
- Core sizes
- 0.5 mm² / 1 mm² / 1.5 mm²
Unscreened
7 mm Copper-Core Silicone Ignition Cable
- Core sizes
- 16 AWG
Metallic screen
Shielded Multicore Silicone Cable
- Core sizes
- 0.5 mm² / 1.0 mm² / 1.5 mm² / 2.5 mm² / 4.0 mm² / 6.0 mm² / 10.0 mm²
Unscreened
Tear-Resistant Silicone Control Cable
- Core sizes
- 0.75 mm² / 1.0 mm² / 1.5 mm² / 2.5 mm² / 4.0 mm² / 6.0 mm²
Need another construction?
Share the materials, dimensions and operating conditions required by your equipment.
Discuss a custom cable →Inside the factory
Silicone Extrusion and Cable Manufacturing Support
See the silicone processing area and inspection work at ANYANG. Discuss the construction and operating requirements for your selected cable.
Inside silicone processing
Silicone extrusion and rubber mixing equipment
Our production equipment includes silicone extruders and silicone rubber mixing machines.
Our process, quality inspection and custom development teams can review your specification and project requirements.
Why ANYANG
Why Choose ANYANG for Custom Cable Supply?
Factory facilities, drawing review and visible inspection work support a clear cable specification.
Silicone processing facilities
Silicone extrusion and rubber mixing equipment are part of our production facilities. Take a closer look at the workshop.
Inside the factoryCore Insulation and Sheath Selection
Materials and layers, Dimensions and identification, Installation and supply: discuss these requirements with our process and custom development teams.
Custom cable supportConductor Testing and Wire Inspection
View conductor-resistance testing and wire first-inspection work from our factory. Confirm the inspection and documentation requirements for the cable you select.
Quality & testing
Material layers
Core Insulation vs Silicone Outer Sheath
Choose the material of each layer explicitly. The factory YGG and YGGP sheets list silicone or “Teflon” core insulation; the extra-flexible sheathed sheet specifies silicone core insulation.
| Specification field | What it defines | What to confirm |
|---|---|---|
| Core insulation | The insulation around each conductor | For an all-silicone build, specify silicone on each core and on the common outer sheath. For the factory-listed “Teflon” option, name the exact fluoropolymer in the project drawing. |
| Outer sheath | The common covering around the assembled cores | Confirm silicone sheath, finished diameter and the installation conditions. |
| Screening | A separate conductive layer, when specified | The YGGP sheet separately identifies a tinned-copper braided screen. |
Construction choices
YGG, YGGP and Extra-Flexible Sheathed Designs
These factory-documented layer arrangements provide a starting point for a custom size and installation brief.
YGG: unscreened equipment connection
Use tinned-copper conductors, the selected core insulation, tissue-paper wrapping and a silicone outer sheath. Define core count × cross-section, core identification and maximum finished diameter.
YGGP: add an overall copper-braid screen
Add an overall tinned-copper braid beneath the silicone sheath for a screened connection. Specify the coverage target, screen termination and any required EMC measurements with the equipment design.
Class 6: extra-flexible sheathed design
Start with the factory Class 6 tinned-copper / silicone-insulated / paper-wrapped / silicone-sheathed construction. Define the strand build and bend conditions for the selected size.
Dimensions & ordering
Cable Diameter, Gland Fit and Installation Conditions
A core size alone does not define the space needed for a sheathed cable.
Cable entry and termination
Specify core count × mm², maximum finished diameter, gland clamping range and stripped length. These dimensions establish fit at the cable entry and terminals.
Identification and assembly
Include the core colours or numbering, stripped lengths and equipment connection drawing.
Continuous Heat, Peaks and Movement
The factory YGG application text distinguishes 180°C (356°F) continuous heat from 200°C (392°F) short-time exposure and calls for ventilation above 100°C (212°F). Define peak duration and route conditions in the project specification.
Custom & supply
Custom cable production and supply for your project
We manufacture custom cables to the agreed project specification. Share your drawing, operating conditions, quantity and delivery destination so we can define the construction, samples and supply terms.
Discuss your specification- Materials and layers
- Identify the core-insulation and outer-sheath materials, core count and conductor size.
- Dimensions and identification
- Include finished outside-diameter limits, cable-entry details and core colours or numbering.
- Installation and supply
- State heat exposure, ventilation, movement, required documents and order quantity.
Packing & delivery
Supply lengths, labels and delivery requirements
Include the required length per coil or reel, order quantity, labelling and delivery destination. Packing method, minimum order quantity and lead time are confirmed for the project.
See packing & delivery information
Free samples
Free Samples of Silicone-Sheathed Cables
We offer free samples.
Silicone-Sheathed Cables: questions before ordering.
Does a silicone sheath mean every insulation layer is silicone?
No. The YGG factory sheet lists silicone or “Teflon” core insulation with a silicone outer sheath. Confirm the core-insulation material in the selected specification.
Does this construction include a screen?
A silicone sheath does not define the screening arrangement. The YGGP family separately documents a tinned-copper braided screen. Specify screening when selecting the construction.
Is it suitable for continuous flexing?
The reviewed YGG sheet describes fixed installation and occasional movement without imposed force. Continuous-flex suitability requires confirmation for the selected construction and operating conditions.
CABLE SELECTION & QUOTATIONS
Send your drawing or cable requirements.
You do not need an ANYANG model number. Share a drawing, existing cable marking or a description of your equipment.
Include the quantity you need and any known dimensions, voltage, temperature or movement requirements. We will check the specification with you.
