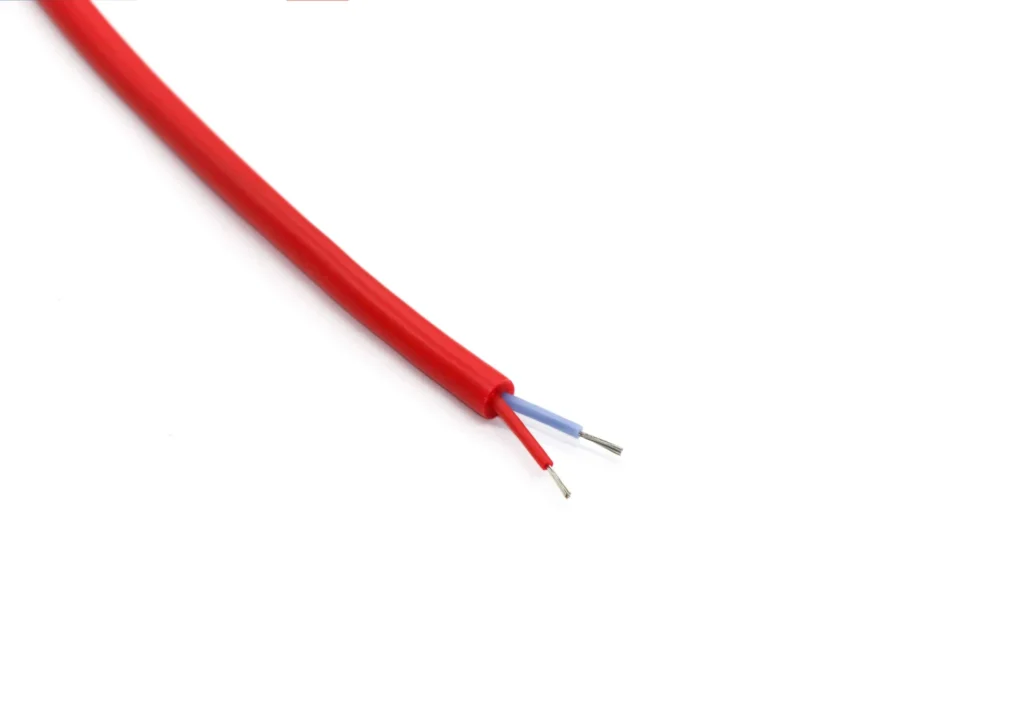

Unscreened
2-Core Silicone Cable – Extra-Flexible Tinned Copper
- Core sizes
- 0.5 mm² / 0.75 mm² / 1 mm² / 1.5 mm² / 2.5 mm² / 4 mm²
Silicone wire & cable / Multicore Silicone Cables

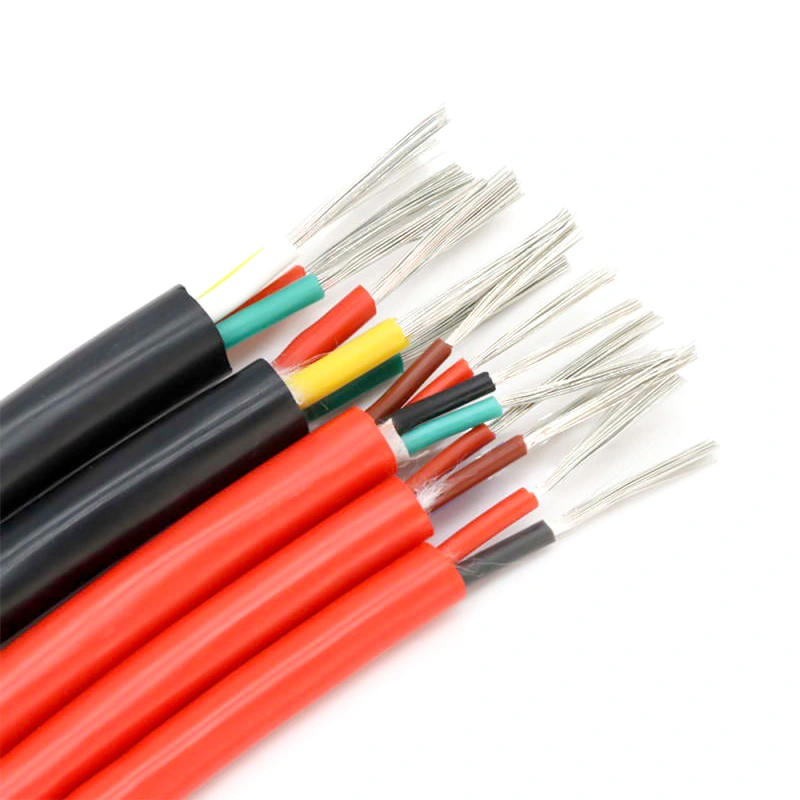

Multicore Silicone Cables
Multiple insulated conductors for equipment connections.
Browse multicore silicone cables, duplex wire and ribbon cable. Compare core count, conductor size, insulation and outer covering in the product list.
- Core count × conductor size
- Construction & screening
- Finished cable diameter
Browse the range
Browse Multicore Silicone Cables
Compare the construction and the listed core sizes. Open a product for its dimensions and specification.
10 products
Unscreened
3-Core Silicone Cable
- Core sizes
- 0.5 mm² / 0.75 mm² / 1 mm² / 1.5 mm² / 2.5 mm² / 4 mm²
Unscreened
4-Core Silicone Cable – Extra-Flexible Tinned Copper
- Core sizes
- 0.5 mm² / 0.75 mm² / 1 mm² / 1.5 mm² / 2.5 mm² / 4 mm²
Unscreened
5-Core Silicone Cable – 5 × 0.3 mm², 600 V
- Core sizes
- 0.3 mm²
Unscreened
6-Core Extra-Flexible Silicone Cable
- Core sizes
- 0.5 mm² / 1 mm² / 1.5 mm²
Unscreened

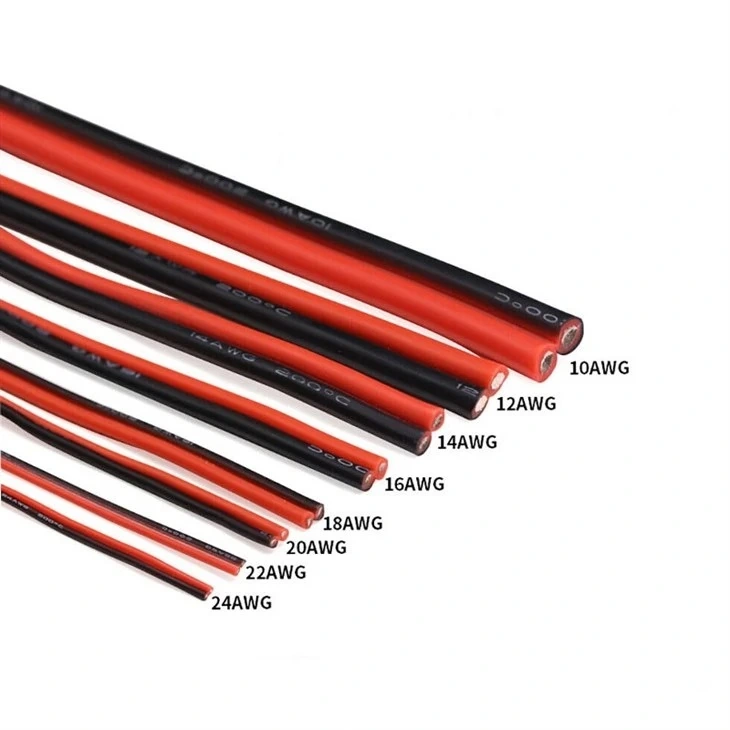

12 AWG Duplex Silicone Wire
- Core sizes
- 12 AWG
Metallic screen

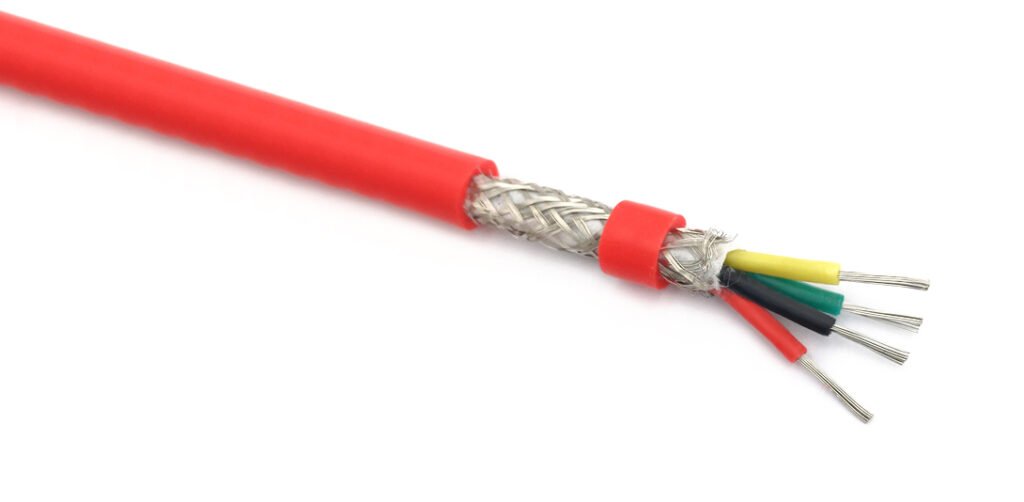

Shielded Multicore Silicone Cable
- Core sizes
- 0.5 mm² / 1.0 mm² / 1.5 mm² / 2.5 mm² / 4.0 mm² / 6.0 mm² / 10.0 mm²
Cable construction

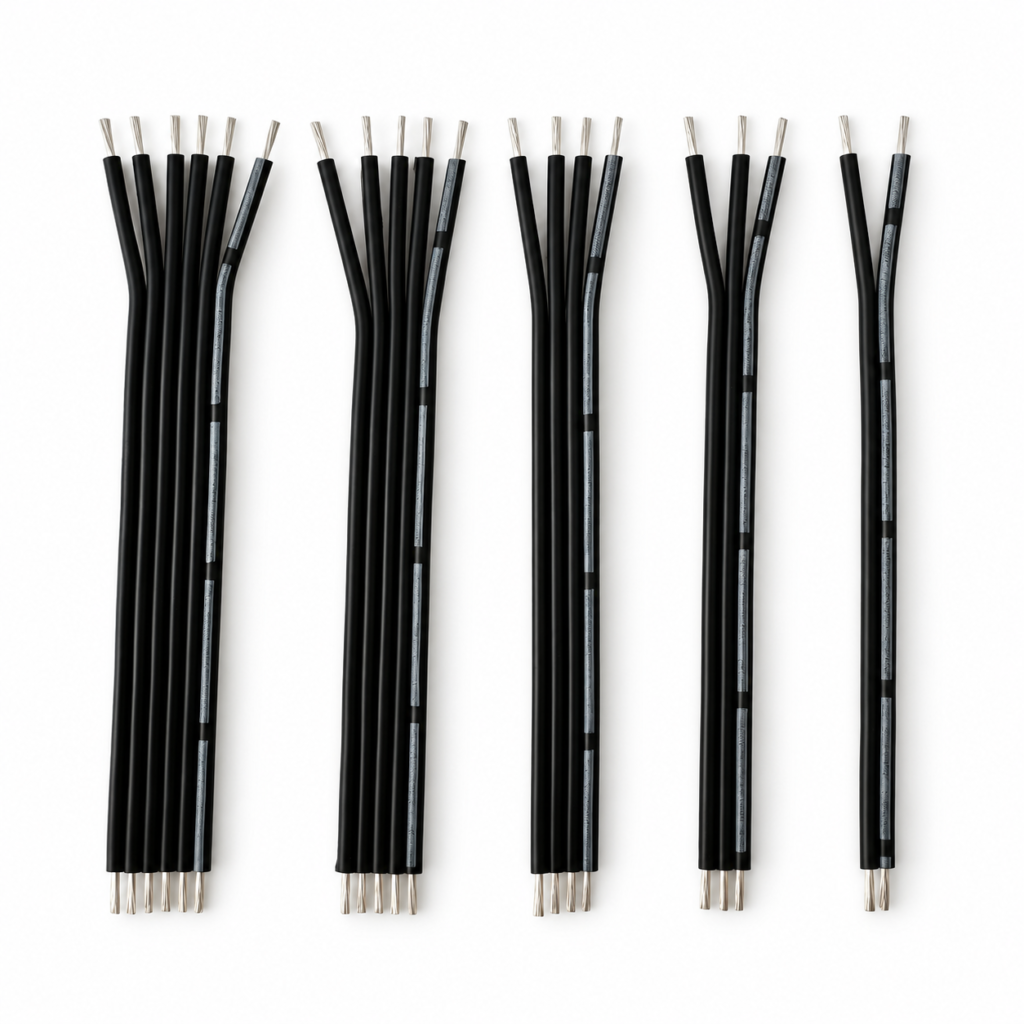

Silicone Ribbon Cable
- Core sizes
- Ask about the required size
Unscreened
Tear-Resistant Silicone Control Cable
- Core sizes
- 0.75 mm² / 1.0 mm² / 1.5 mm² / 2.5 mm² / 4.0 mm² / 6.0 mm²
Need another construction?
Share the materials, dimensions and operating conditions required by your equipment.
Discuss a custom cable →Inside the factory
Manufacturing support for your multicore cable project
See the silicone processing area and inspection work at ANYANG, then discuss the construction your equipment needs.
Inside silicone processing
Silicone extrusion and rubber mixing equipment
Our production equipment includes silicone extruders and silicone rubber mixing machines.
Our process, quality inspection and custom development teams can review your core arrangement, dimensions and project requirements.
Why ANYANG
Why choose ANYANG for your multicore cable project?
Factory facilities, drawing review and visible inspection work support a clear cable specification.
Silicone processing facilities
Silicone extrusion and rubber mixing equipment are part of our production facilities. Take a closer look at the workshop.
Inside the factoryCore Layout and Cable Specification Review
Discuss core count, conductor size, insulation, screening and sheath requirements with our process and custom development teams.
Custom cable supportConductor Testing and Wire Inspection
View conductor-resistance testing and wire first-inspection work from our factory. Confirm the inspection and documentation requirements for the cable you select.
Quality & testing
Construction

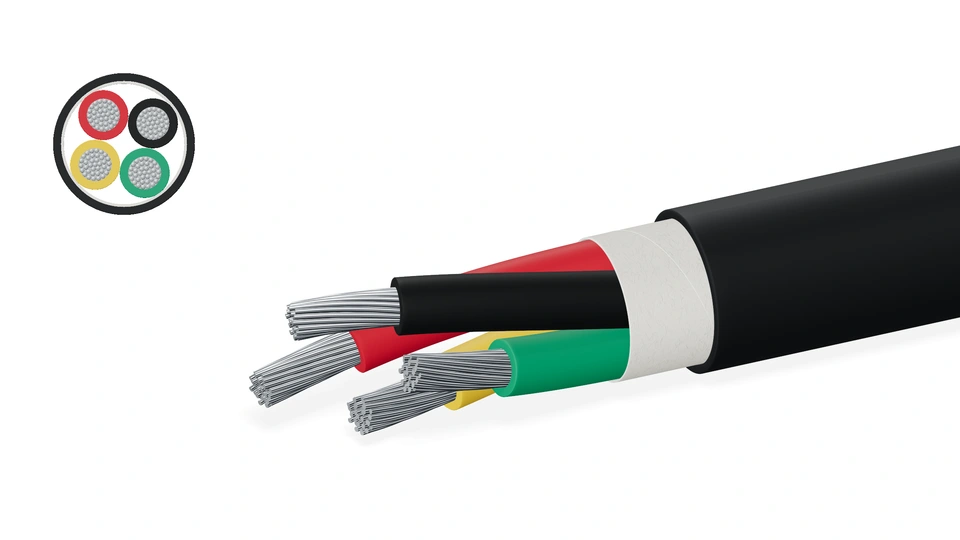

Multicore Silicone Cable Construction: Sheathed Example
The factory extra-flexible sheathed series uses tinned-copper conductors, silicone core insulation, tissue-paper wrapping and a silicone outer sheath. Other listed formats have their own constructions.
Example: Class 6 Tinned-Copper Conductors
The factory extra-flexible sheathed series lists Class 6 tinned-copper conductors. Check the selected product for its conductor specification.
Core insulation & identification
The illustrated reference uses silicone core insulation. Include the core colours or numbering required by your drawing; insulation materials depend on the selected construction.
Wrapping & screening

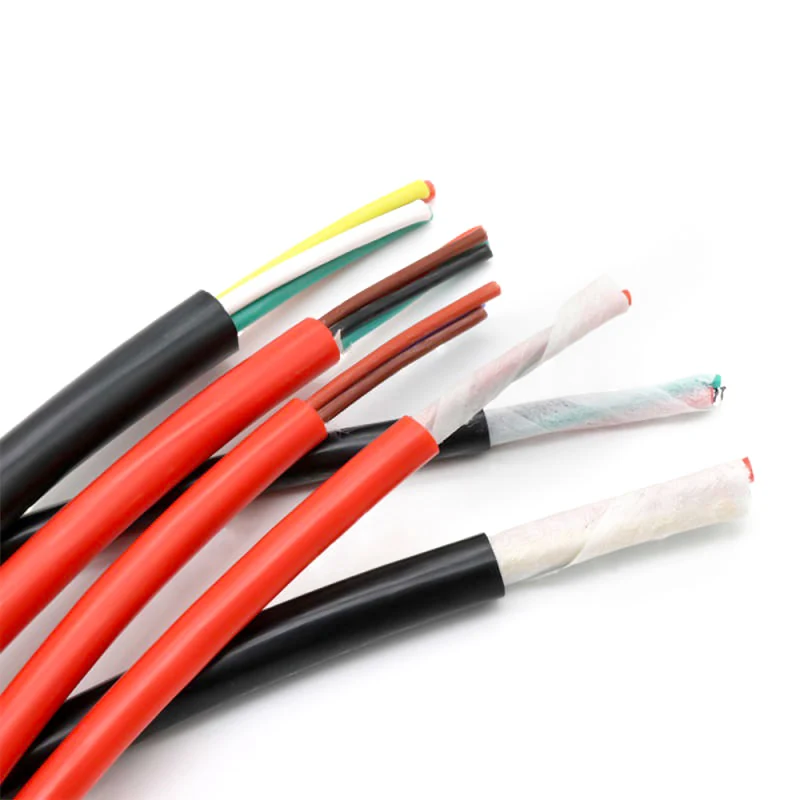

The reference sheet lists tissue-paper wrapping beneath the sheath. A metallic screen is a separate construction feature; confirm it in the selected product specification.
Silicone Outer Sheath
The sheathed reference has a silicone-rubber outer sheath. The duplex wire and ribbon cable listed above are separate formats and are not represented by this illustration.
Selection & use
Core count, conductor size & finished diameter
Core count and conductor size describe the electrical connection. Use the selected product table to check the finished cable dimensions.
Core Count and Size per Conductor
4 × 0.75 mm² means four cores, each with a nominal conductor cross-section of 0.75 mm². It does not mean a 0.75 mm cable diameter.
Finished Diameter and Cable-Entry Fit
Check the finished outside diameter against your cable entry, terminal arrangement and routing space. Different constructions can have different diameters at the same core count and conductor size.
Temperature and Movement Conditions
Include operating voltage, temperature, screening and any movement in your enquiry. Confirm the bend radius and installation limits for the selected cable; a flexible conductor alone does not establish continuous-motion suitability.
Custom & supply
Custom Multicore Cable Specifications and Bulk Supply
Share the circuit layout, cable drawing or existing cable marking. We can review the construction and confirm supply details for your project.
Discuss your specification- Core arrangement
- Specify the number of cores, each conductor size and any mixed cross-sections.
- Layers & identification
- Define the core insulation, screen requirement, outer sheath and core identification.
- Finished cable & supply
- Provide diameter limits, routing requirements, supply lengths and quantity.
For installation review, include the cable entry, terminal arrangement, core identification and any movement or heat exposure. State the normal and peak conditions your equipment requires.
Packing & delivery

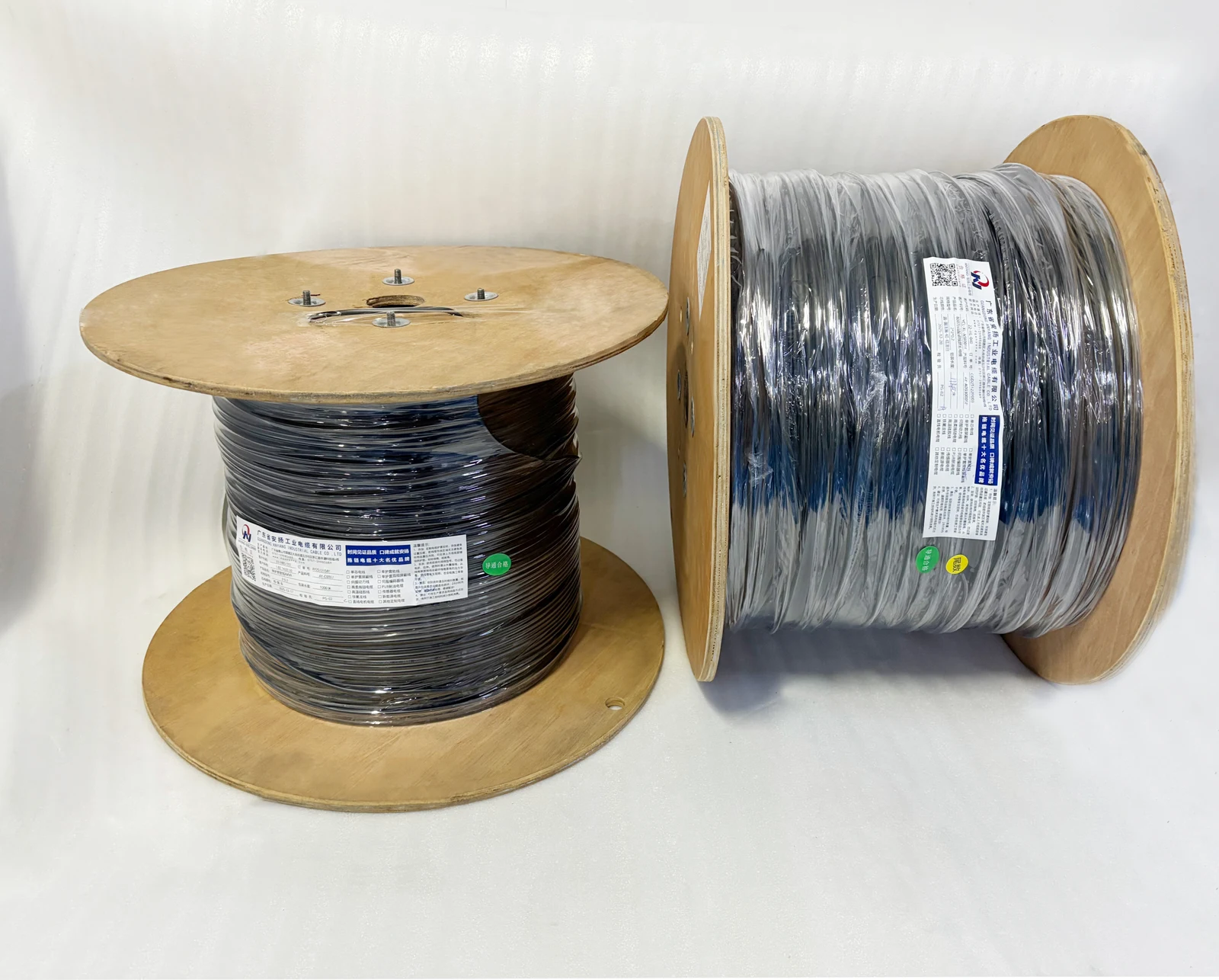

Supply lengths, labels and delivery requirements
Include the required length per coil or reel, order quantity, labelling and delivery destination. Packing method, minimum order quantity and lead time are confirmed for the project.
See packing & delivery information
Free samples
Free Samples of Multicore Silicone Cables
We offer free samples.
Multicore Silicone Cables: questions before ordering.
What is a multicore (multi-conductor) silicone cable?
A sheathed multicore cable contains several individually insulated conductors within a common outer sheath. This category also lists duplex and ribbon formats separately.
How do I read 4 × 0.75 mm²?
It means four cores, each with a nominal conductor cross-sectional area of 0.75 mm². It is not the overall cable diameter. The size table lists that separately.
Can I request another core count or sheath colour?
Send the required core count, conductor sizes, materials, colours and diameter limits. Our team reviews the proposed construction and confirms whether it can be supplied, together with the order terms.
What should a bulk cable enquiry include?
Include the construction, quantity, required length per coil or reel, delivery destination and documents needed. Minimum order quantity and lead time are confirmed for the specific order.
CABLE SELECTION & QUOTATIONS
Send your drawing or cable requirements.
You do not need an ANYANG model number. Share a drawing, existing cable marking or a description of your equipment.
Include the quantity you need and any known dimensions, voltage, temperature or movement requirements. We will check the specification with you.
