FIXED CONNECTIONS
Cabinet-to-machine wiring
Provide the connection diagram, core arrangement and cable exit details for the equipment.
General equipment wiring

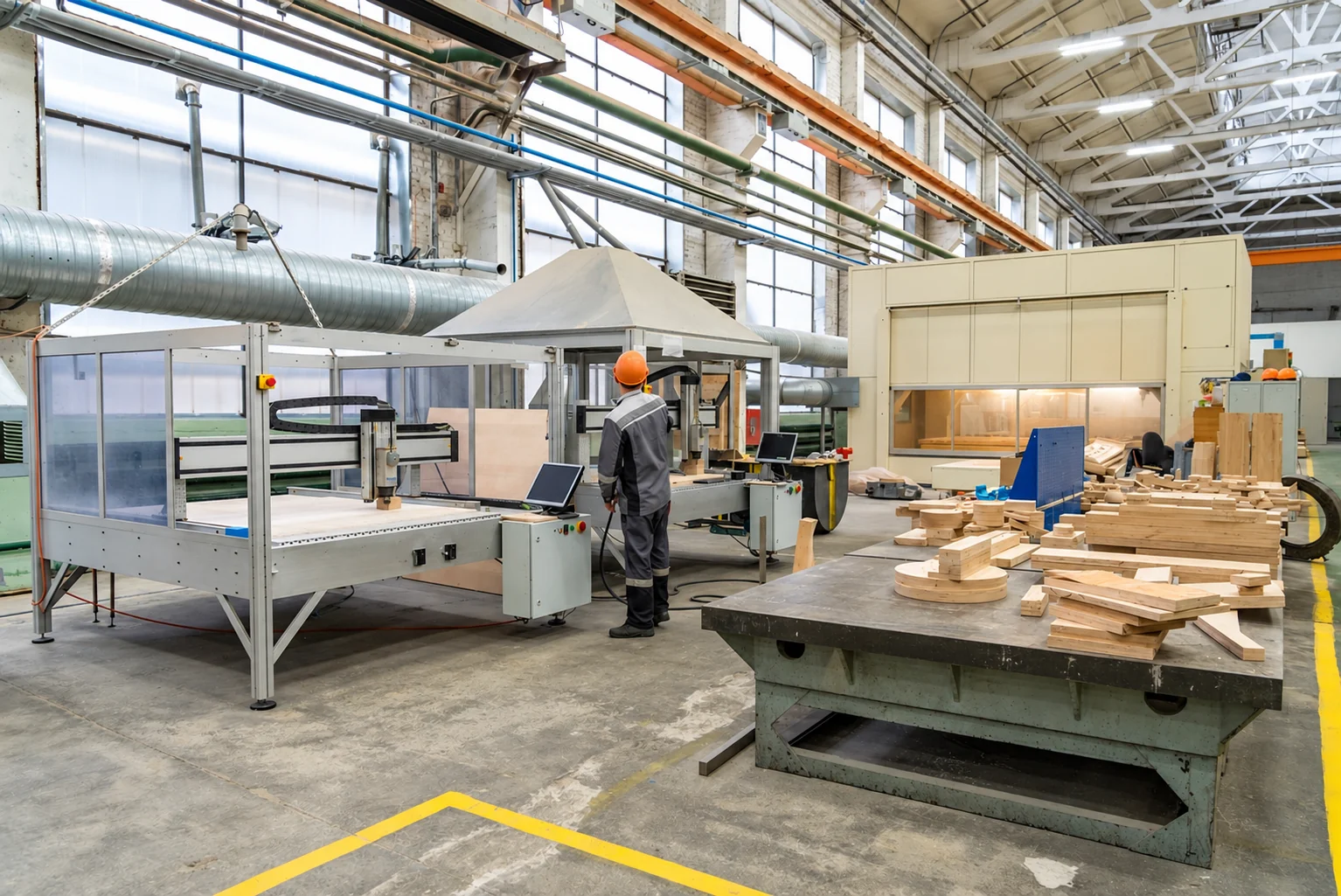

APPLICATION / Woodworking machinery
Silicone Cable for
Woodworking Machinery
Cabinet-to-machine connections and protected internal wiring.
For cabinet-to-machine and protected internal wiring, we start from YGG silicone-sheathed cable: tinned-copper cores under a silicone sheath, up to 20 cores, rated −60 °C (−76°F) to +180 °C (356°F) continuous and +200 °C (392°F) short-term.
AT A GLANCE
Woodworking machine wiring at a glance
Each woodworking-machine connection and the silicone cable we start from.
| Connection | Cable construction | Key point |
|---|---|---|
| Cabinet-to-machine wiring | YGG silicone-sheathed cable | 2 × 0.14 mm² to 5 × 10 mm², up to 20 cores |
| Protected internal routes | YGG silicone-sheathed cable | Dust and chip protection defined by the machine design |
| CNC and handling motion | Separate motion specification | Not for cable-carrier service |
CONNECTION TASKS
Woodworking machine wiring
YGG silicone-sheathed cable is a general power, control and connection cable for electrical equipment. Dust, chip impact and continuous motion on woodworking machines need to be specified and reviewed.
ROUTING
Protected internal routes
Protected internal wiring routes within machine enclosures. Exposed runs require suitable mechanical protection.
Protection to be defined
MOVING AXES

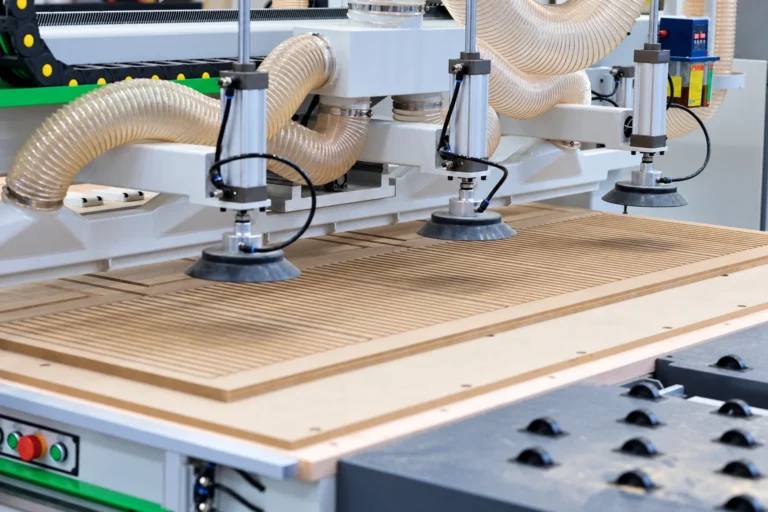

CNC and handling motion
Submit the moving-route drawing and motion profile separately. A cable designed for occasional movement is not suitable for cable-carrier service.
Separate motion specification
SELECTION CHECKS
Operating conditions to specify
Include these conditions with your enquiry so we can select the right cable.
Dust & chips
The exposure at the cable location and the machine's mechanical protection decide the installation design.
Circuit & interfaces
Power, control or feedback duty, the terminals and the required screening define the cable.
Cable movement
Travel, bend radius, speed and cycles define any moving connection.
OUR CABLE
Silicone cable construction
Construction and technical data.
YGG / EQUIPMENT CONNECTION CABLE
YGG silicone-sheathed cable
- Temperature range
- −60 °C (−76°F) to +180 °C (356°F) continuous; +200 °C (392°F) short-term (fixed installation)
- Continuous / short-term
- +180 °C (356°F) continuous, +200 °C (392°F) short-term
- Conductor
- Fine-stranded tinned copper, IEC 60228 Class 5/6
- Core insulation
- Silicone rubber or fluoropolymer
- Outer sheath
- Silicone rubber; black, blue, grey or red
- Sizes
- 2 × 0.14 mm² to 5 × 10 mm², up to 20 cores
- Outer diameter
- 4.1 mm (2 × 0.14 mm²) to 19.3 mm (5 × 10 mm²)
- Rated voltage
- U0/U 300/300 V below 0.5 mm²; 300/500 V for 0.5–4 mm²; 450/750 V heavy version from 4 mm²
- Minimum bend radius
- 6 × cable diameter (fixed installation)
- Installation
- Fixed, or occasional movement without pulling force; not for direct burial
APPLICATION LIMITS
Cable & mechanical protection
The sheath material alone does not make an installation dust-tight or chip-resistant.
- Connection
- Define the electrical requirements and cable construction.
- Protection
- Show covers, glands, carrier or conduit requirements in the installation drawing.
- Motion
- YGG is not specified for continuous cable-carrier service.
TECHNICAL DOCUMENTS
Datasheet & project checklist
Product datasheet and quotation checklist.
YGG silicone-sheathed cable
Construction, applications and size table.
Certification is model-specific; the marks on a datasheet do not replace a certificate.Woodworking machinery brief
Send a drawing or existing cable specification with the following information.
What information helps?
- Machine layout and protected/exposed cable routes
- Circuit types, conductor sizes and connection drawings
- Dust/chip exposure and protection-system details
- Any carrier motion, cycle requirements and acceptance documents
BEFORE YOU SPECIFY
Frequently asked questions
Is YGG resistant to wood chips?
The YGG datasheet does not specify a chip-impact rating. Exposed routes need separate mechanical protection.
Is this a replacement for a dedicated CNC cable specification?
No. Power, feedback and moving-axis circuits need the machine builder’s specified cable requirements.
Is a shielded version available for feedback circuits?
Yes. YGGP adds a tinned-copper braided screen under the silicone sheath. Confirm the core count, size and screening for your circuit.
CUSTOM SUPPORT & ENQUIRY
Request a silicone cable quote
Need a custom size or construction? Send your drawing, operating conditions and required quantity for a quotation.
