Unscreened
0.3 mm² Class 5 Silicone Hook-Up Wire — AGR
- Core sizes
- 0.3 mm²
Silicone wire & cable / Single-Core Silicone Cables
Single-Core Silicone Wire & Cable
Single insulated conductors in AWG and metric sizes.
Browse AGR metric hook-up wire, fine-stranded AWG wire and braided silicone wire. Compare the listed constructions and conductor sizes.
- AWG or mm²
- Insulation & diameter
- Required documentation
Browse the range
Browse Single-Core Silicone Cables
Compare the construction and the listed core sizes. Open a product for its dimensions and specification.
36 products
Unscreened
0.5 mm² Class 5 Silicone Hook-Up Wire — AGR
- Core sizes
- 0.5 mm²
Unscreened
0.75 mm² Class 5 Silicone Hook-Up Wire — AGR
- Core sizes
- 0.75 mm²
Unscreened
1.5 mm² Class 5 Silicone Hook-Up Wire — AGR
- Core sizes
- 1.5 mm²
Unscreened
2.5 mm² Class 5 Silicone Hook-Up Wire — AGR
- Core sizes
- 2.5 mm²
Need another construction?
Share the materials, dimensions and operating conditions required by your equipment.
Discuss a custom cable →Inside the factory
Silicone wire manufacturing at ANYANG
Take a closer look at our silicone processing area and the people supporting your cable project.

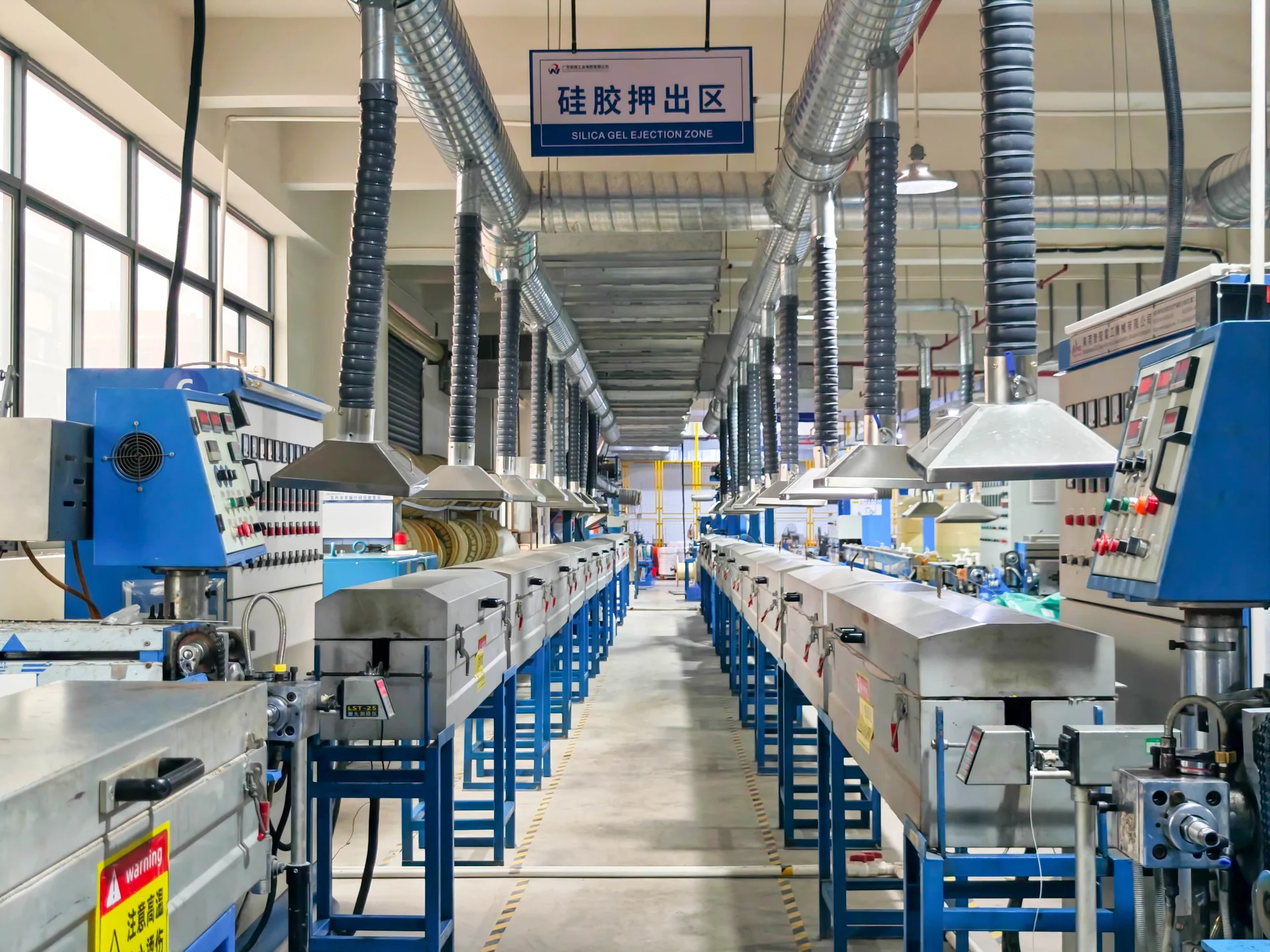

Silicone processing
Silicone extrusion and rubber mixing equipment
Our production equipment includes silicone extruders and silicone rubber mixing machines.
Our process, quality inspection and custom development teams can discuss your cable specification and project requirements.
Why ANYANG
Why choose ANYANG for your silicone wire project?
Manufacturing facilities, specification support and a closer look at our inspection work.
Silicone processing facilities
Silicone extrusion and rubber mixing equipment are part of our production facilities. Explore the workshop and manufacturing equipment.
Inside the factoryConductor and Insulation Specification Review
Discuss your construction, dimensions and operating requirements with our process and custom development teams.

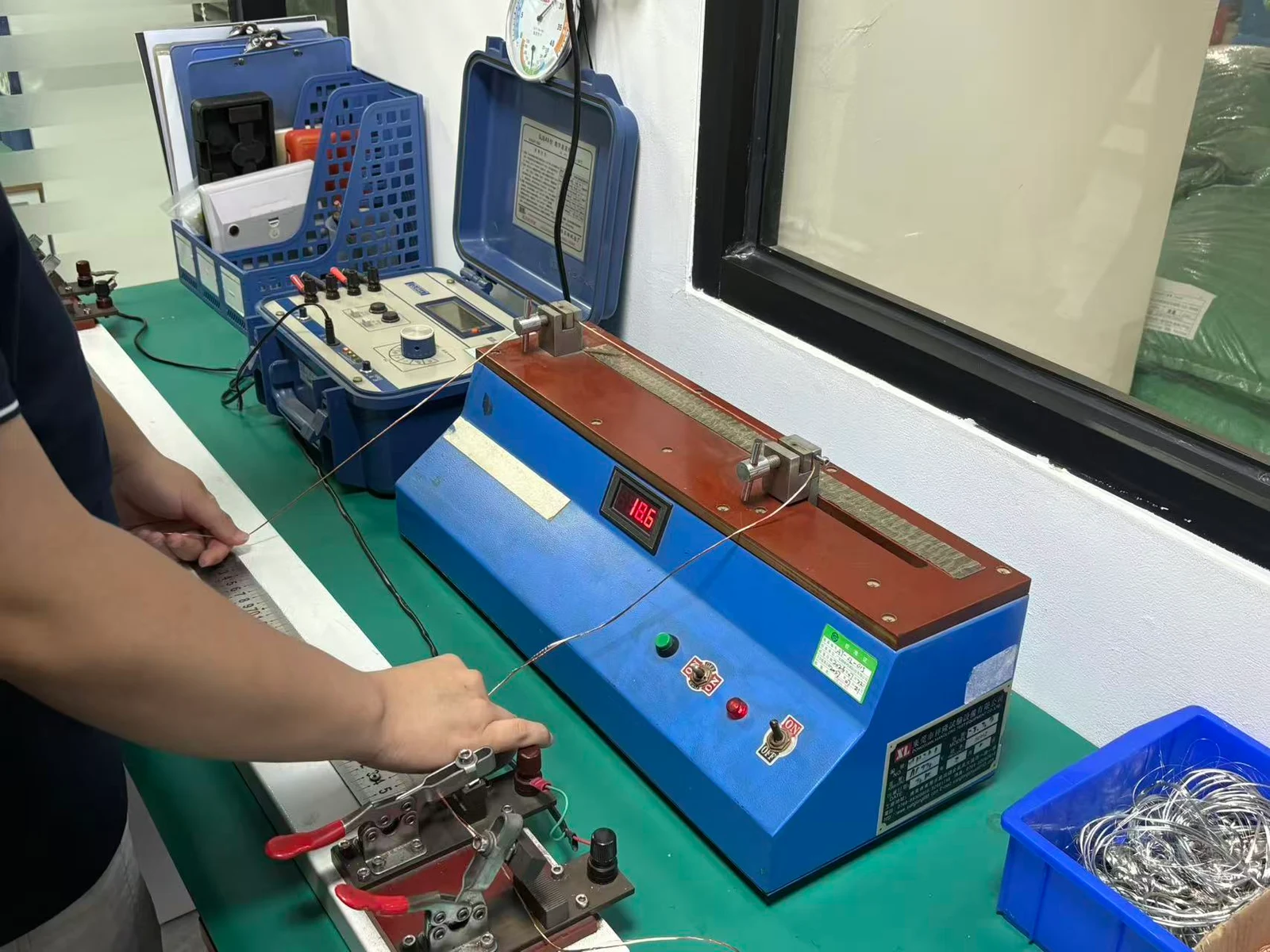

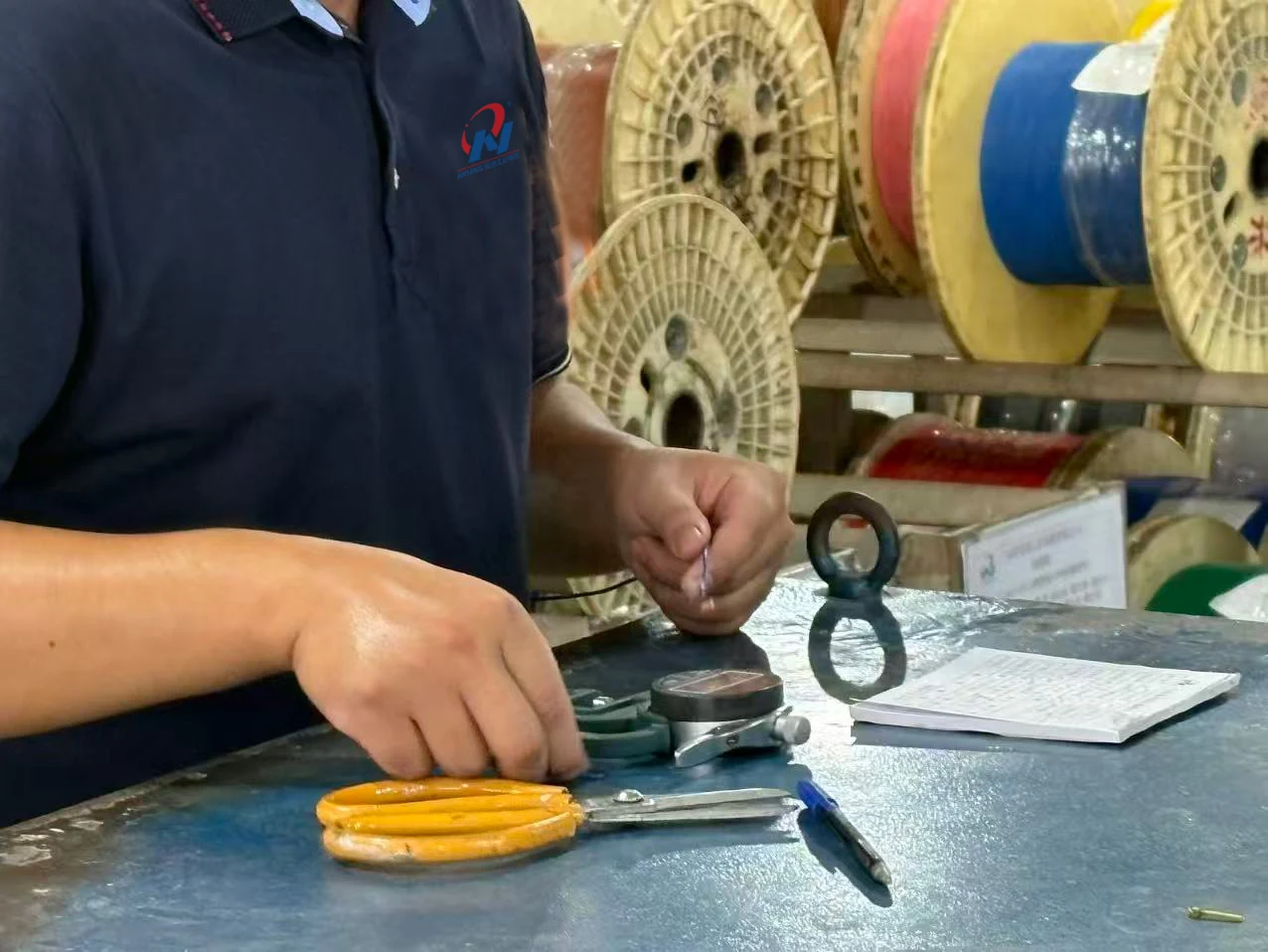

Custom cable supportConductor Testing and Wire Inspection
View conductor-resistance testing and wire first-inspection work from our factory. Discuss the inspection requirements for your selected cable.
Quality & testing

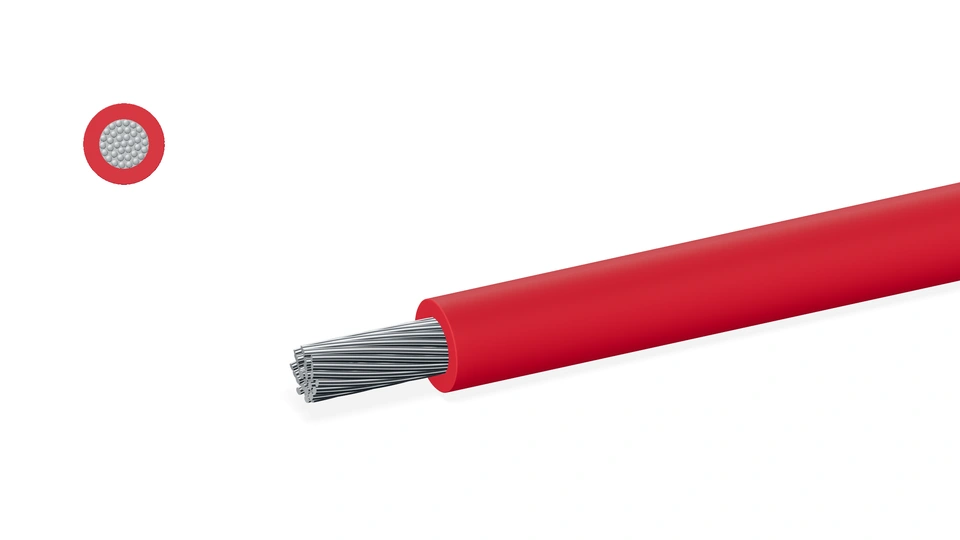

Wire construction

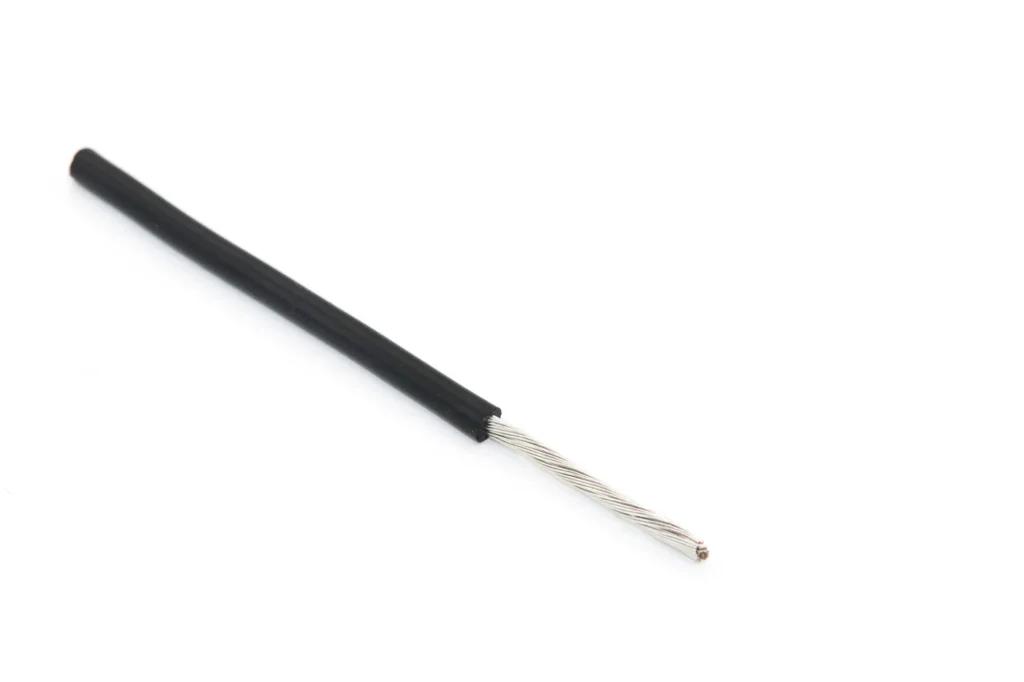

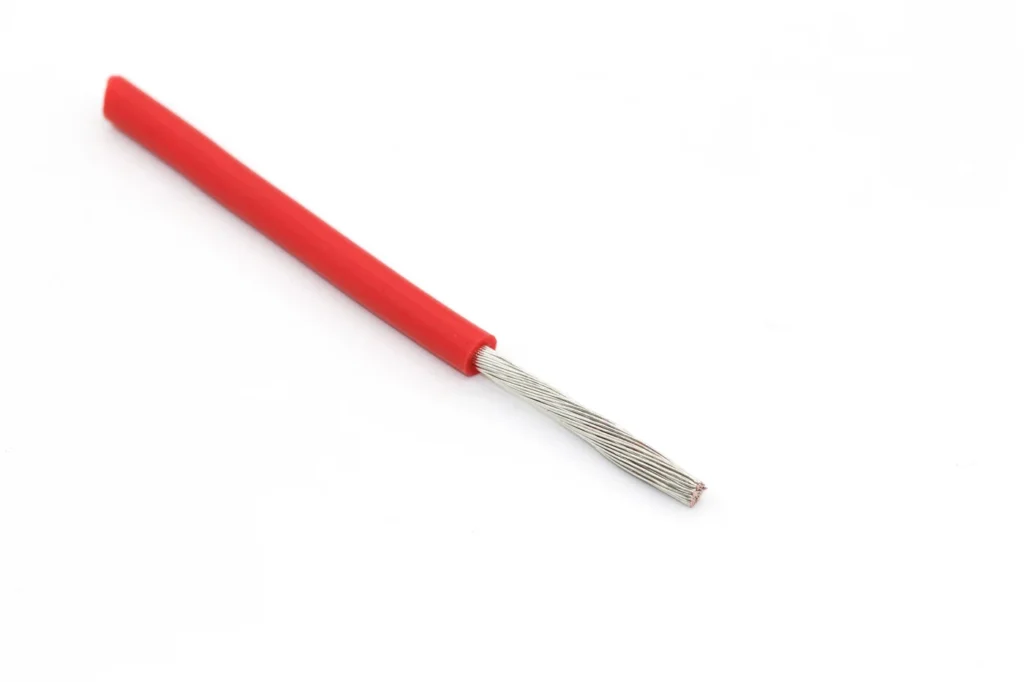

Tinned copper silicone wire construction
AGR silicone wire is a single insulated conductor with no outer sheath. If the route needs extra mechanical protection, tell us so we can suggest a sheathed construction.
Tinned-Copper Conductor

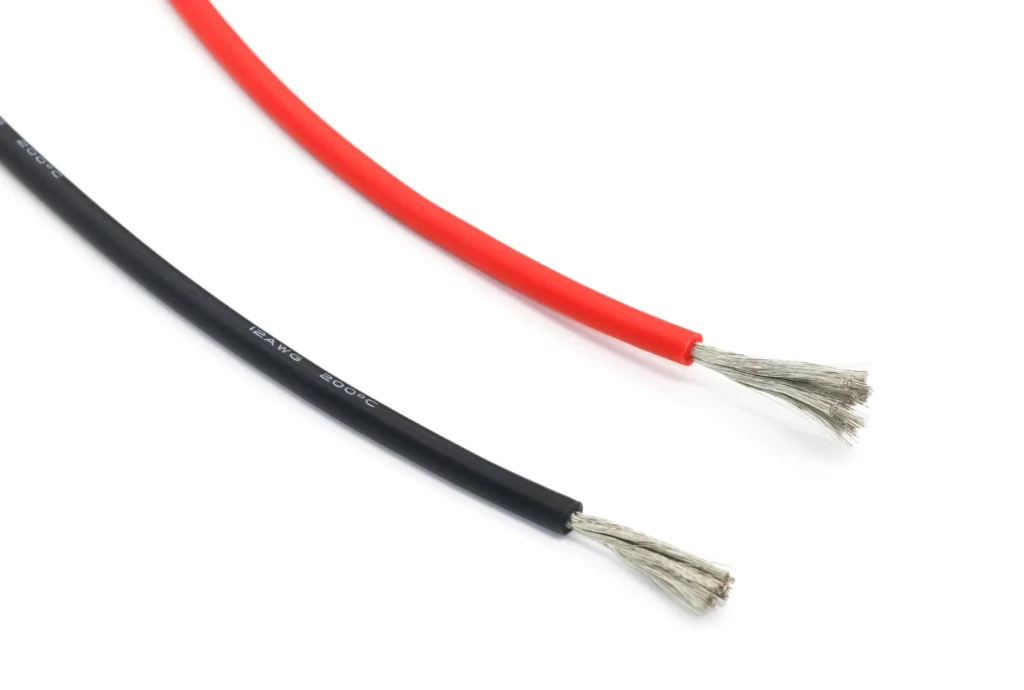

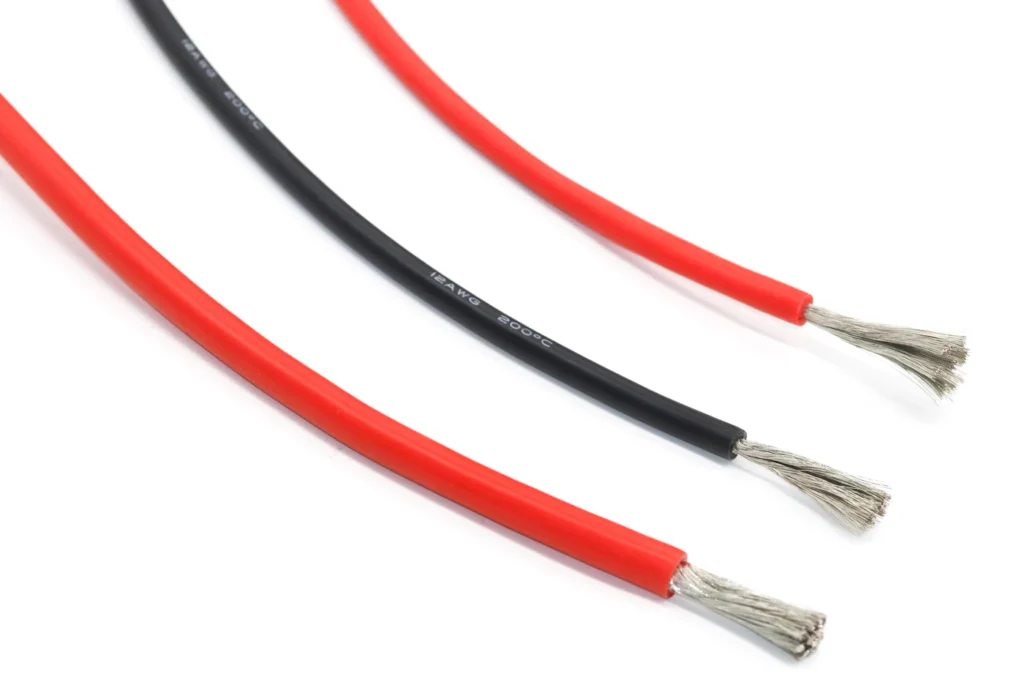

AGR uses Class 5 tinned copper and metric conductor sizes. The extra-flexible single-core range uses 0.08 mm tinned-copper strands and AWG sizes.
Silicone Insulation
Silicone insulation surrounds the conductor. Its finished outside diameter must fit the terminal, sleeve and routing space.
Wire Colours and Identification
State the insulation colour and any marking needed for equipment assembly and maintenance.
Size & style
Single-Core Wire Sizes, Dimensions and UL Styles
Each field answers a different purchasing question. Two wires with the same AWG size can still be built differently.
| Selection field | Use it to specify | Confirm alongside it |
|---|---|---|
| AWG or mm² | The conductor size | Order in the unit listed for the product (AWG or mm²). AWG and mm² sizes are not exact equivalents. |
| Outside diameter | Terminal and routing fit | Insulation construction and tolerances. |
| UL style, when required | The equipment documentation requirement | The exact style, rating, manufacturer file and supplied construction. |
Custom & supply
Custom Single-Core Wire and Bulk Supply
Share a drawing, cable marking or equipment requirement. We can review the construction and confirm the supply details for your project.
Discuss your specification- Conductor & size
- Specify AWG or mm², stranding and the conductor finish required by your drawing.
- Insulation & identification
- Provide the outside-diameter limit, insulation colour and marking requirements.
- Assembly & supply
- Include terminal details, cut lengths or reel lengths, and the order quantity.
For assembly review, include the terminal or sleeve drawing, stripping length, routing constraints and electrical or thermal duty.

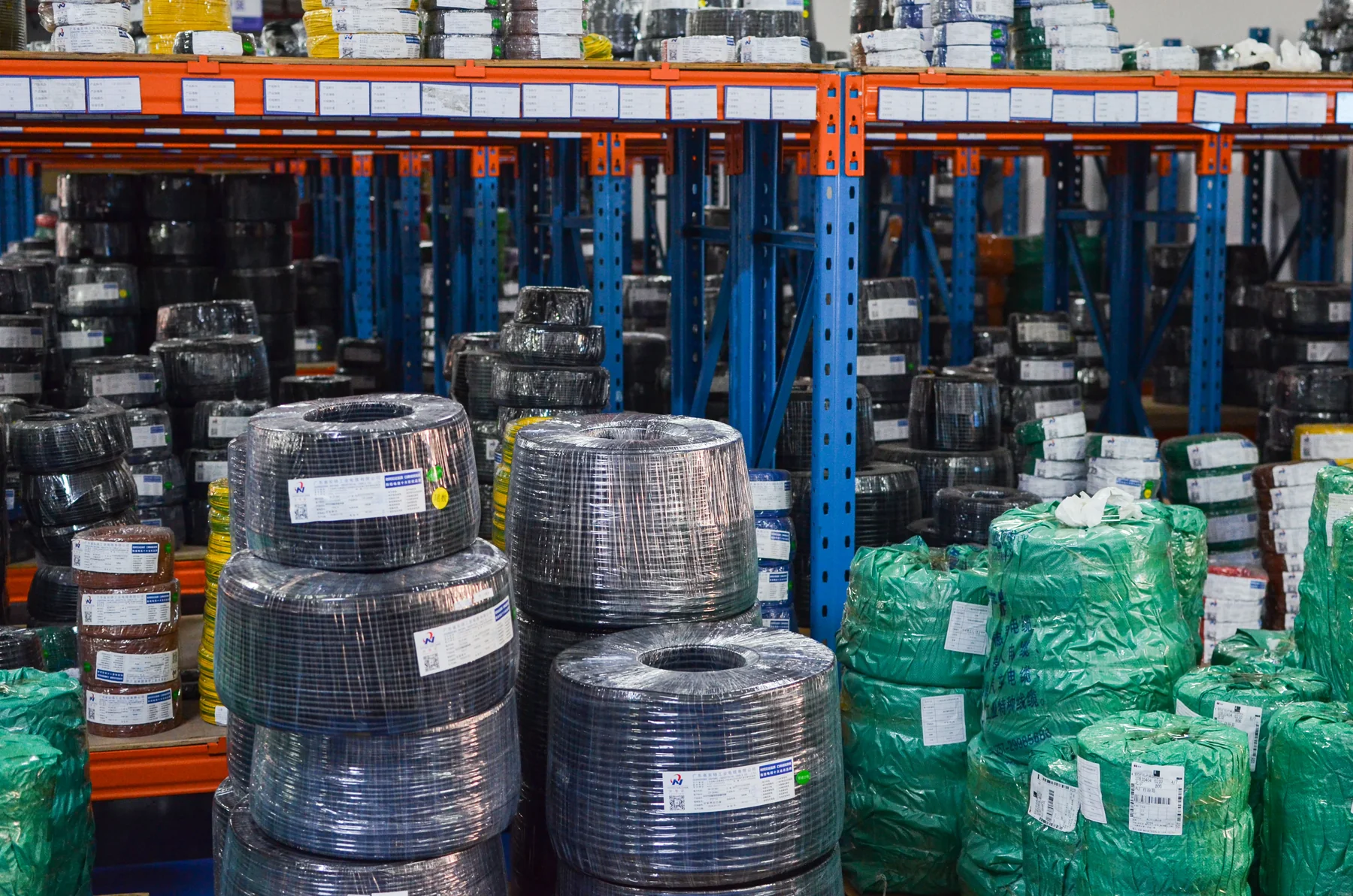

Packing & delivery
Coils, reels and delivery requirements
Include the required length per coil or reel, quantity, labelling and destination with your enquiry. Packing method, minimum order quantity and lead time are confirmed for the project.
See packing & delivery information
Free samples
Free Samples of Single-Core Silicone Cables
We offer free samples.
Single-Core Silicone Cables: questions before ordering.
Is AWG the same as the outside diameter?
No. AWG identifies conductor size. Finished wire diameter also includes the insulation and is listed separately.
Does every silicone wire have the same UL style?
No. Specify the UL style your equipment requires and ask us for the documents for the wire supplied. Silicone describes the insulation material, not a UL approval.
Can I use a single-core wire wherever a sheathed cable is used?
The AGR and extra-flexible single-core ranges have individual silicone insulation without a separate outer sheath. A separately sheathed cable is a different construction.
What is silicone hook-up wire?
Silicone hook-up wire is a single insulated conductor with silicone rubber insulation, used for connections inside equipment. Our AGR hook-up wire has a Class 5 fine-stranded tinned-copper conductor, is listed from 0.3 mm² to 16 mm² and is rated U0/U 300/500 V from 0.5 mm² upwards.
CABLE SELECTION & QUOTATIONS
Send your drawing or cable requirements.
You do not need an ANYANG model number. Share a drawing, existing cable marking or a description of your equipment.
Include the quantity you need and any known dimensions, voltage, temperature or movement requirements. We will check the specification with you.
