EQUIPMENT CONNECTIONS
Machine interconnections
Identify the machine section and its power or control circuits. Provide core count, cable length and terminal arrangement.
General equipment wiring

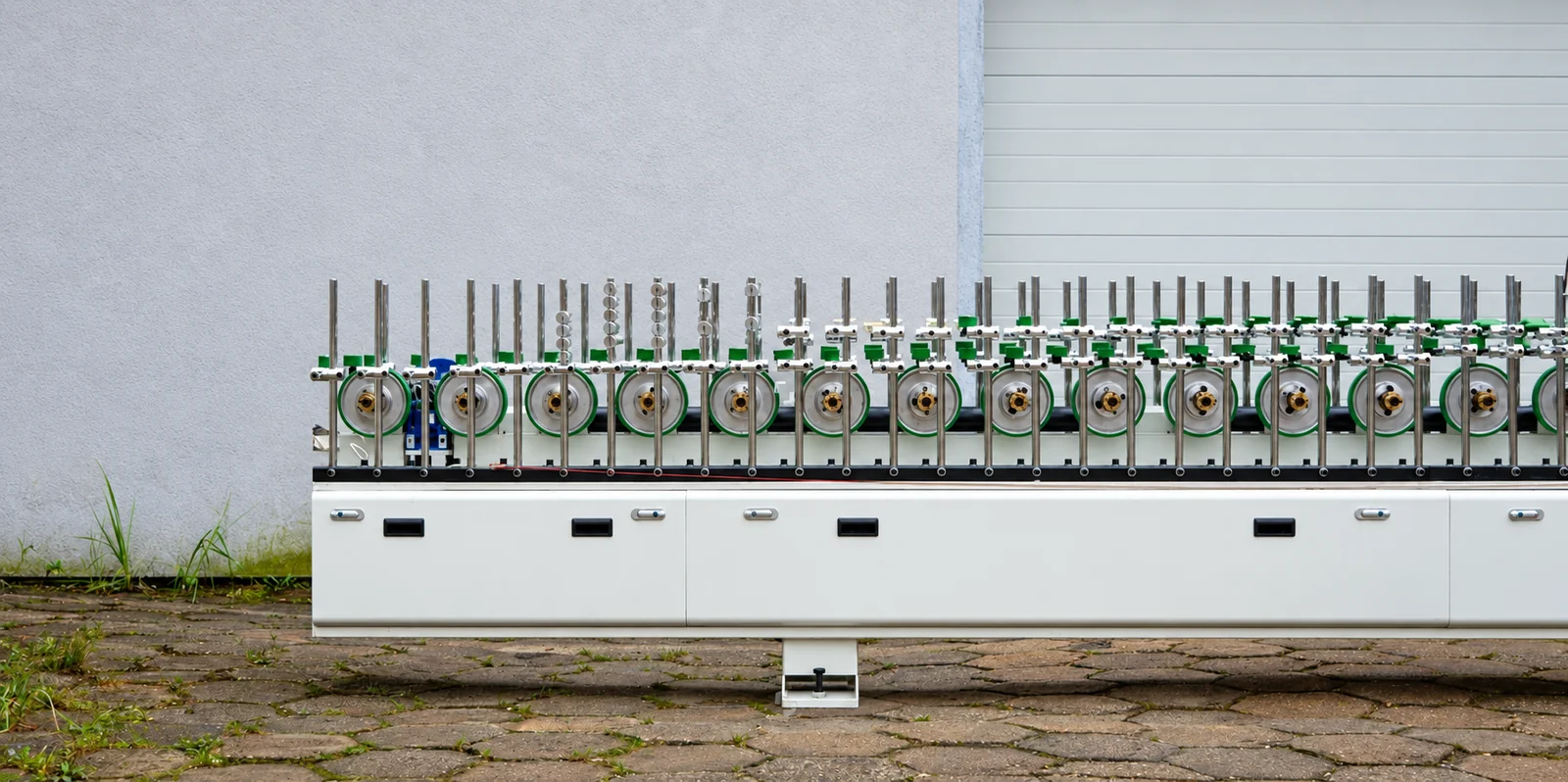

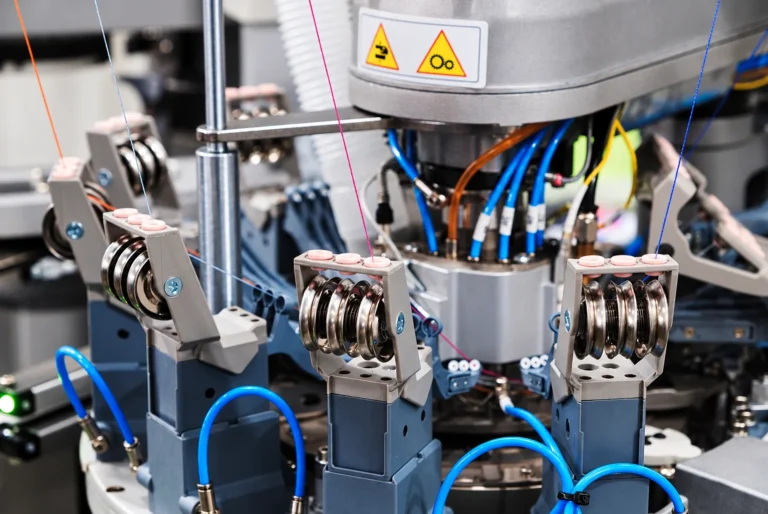

APPLICATION / Textile machinery
Silicone Cable for
Textile Machinery
Wiring for textile machines.
For machine interconnections and heat-exposed wiring, we start from YGG silicone-sheathed cable: tinned-copper cores under a silicone sheath, up to 20 cores, rated −60 °C (−76°F) to +180 °C (356°F) continuous and +200 °C (392°F) short-term.
AT A GLANCE
Textile machine wiring at a glance
Each textile-machine connection and the silicone cable we start from.
| Connection | Cable construction | Key point |
|---|---|---|
| Machine interconnections | YGG silicone-sheathed cable | 2 × 0.14 mm² to 5 × 10 mm², up to 20 cores |
| Heat-exposed wiring | YGG silicone-sheathed cable | +180 °C (356°F) continuous; +200 °C (392°F) short-term |
| Moving machine parts | Separate motion specification | YGG allows occasional movement only, without pulling force |
CONNECTION TASKS
Textile machine wiring
YGG is a silicone-sheathed cable for machine power and control connections, with fixed installation or occasional movement without pulling force.
THERMAL REVIEW
Heat-exposed wiring
For a connection near heated equipment, state temperature at the cable route, exposure duration and available ventilation.
Confirmed with your quotation
MOTION REVIEW
Moving machine parts
Provide travel, bending and repetition requirements. Treat frequently moving connections separately from fixed equipment wiring.
Motion test required
SELECTION CHECKS
Operating conditions to specify
Include these conditions with your enquiry so we can select the right cable.
Process location
The machine, its installation section and the conditions at the actual cable position define the requirement.
Materials & exposure
Contact with liquids, cleaning products or process materials decides the compatibility review.
Movement & routing
Whether the cable is fixed, occasionally repositioned or continuously moving decides the construction.
OUR CABLE
Silicone cable construction
Construction and technical data.
YGG / EQUIPMENT CONNECTION CABLE
YGG silicone-sheathed cable
- Temperature range
- −60 °C (−76°F) to +180 °C (356°F) continuous; +200 °C (392°F) short-term (fixed installation)
- Continuous / short-term
- +180 °C (356°F) continuous, +200 °C (392°F) short-term
- Conductor
- Fine-stranded tinned copper, IEC 60228 Class 5/6
- Core insulation
- Silicone rubber or fluoropolymer
- Outer sheath
- Silicone rubber; black, blue, grey or red
- Sizes
- 2 × 0.14 mm² to 5 × 10 mm², up to 20 cores
- Outer diameter
- 4.1 mm (2 × 0.14 mm²) to 19.3 mm (5 × 10 mm²)
- Rated voltage
- U0/U 300/300 V below 0.5 mm²; 300/500 V for 0.5–4 mm²; 450/750 V heavy version from 4 mm²
- Minimum bend radius
- 6 × cable diameter (fixed installation)
- Installation
- Fixed, or occasional movement without pulling force; not for direct burial
APPLICATION LIMITS
Heat, movement & maintenance
A general equipment cable is not suitable for every textile-machine function.
- Fixed connections
- Circuit drawing, core arrangement and installation space.
- Heat-exposed sections
- Local temperature, duration and enclosure ventilation.
- Moving connections
- Motion profile and the test the cable must pass.
TECHNICAL DOCUMENTS
Datasheet & project checklist
Product datasheet and quotation checklist.
YGG silicone-sheathed cable
Construction, applications and size table.
Certification is model-specific; the marks on a datasheet do not replace a certificate.Textile machinery brief
Send a drawing or existing cable specification with the following information.
What information helps?
- Textile machine model and connection locations
- Power/control function, core count and conductor sizes
- Heat, liquids, cleaning and routing details
- Movement profile and documentation required by the machine builder
BEFORE YOU SPECIFY
Frequently asked questions
Is YGG suitable for every position on a textile machine?
YGG is specified for fixed installation or occasional movement without pulling force, not continuous cable-carrier motion.
Can the same cable be used in a continually moving carrier?
Not as standard. YGG is designed for fixed installation and occasional movement without pulling force.
Which sheath colours are available for YGG?
Black (RAL 9005), blue (RAL 5005), grey (RAL 7001) and red (RAL 3000). Other colours are made to order.
CUSTOM SUPPORT & ENQUIRY
Request a silicone cable quote
Need a custom size or construction? Send your drawing, operating conditions and required quantity for a quotation.
