INTERNAL WIRING

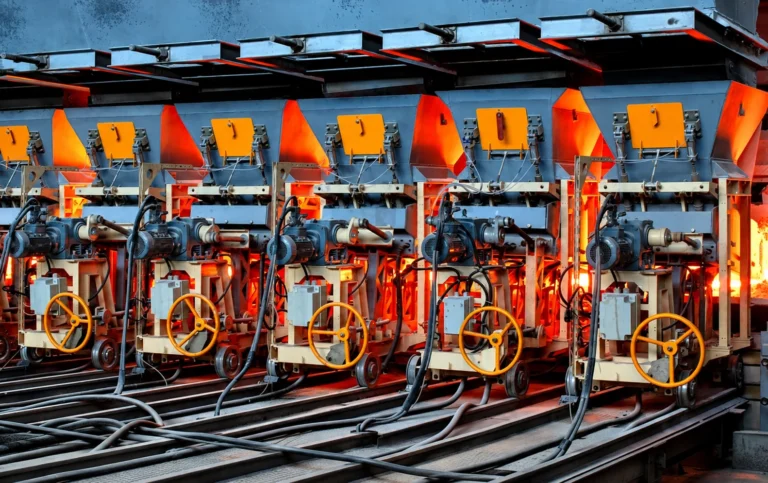

Heat-exposed internal leads
AGR is a single-core insulated wire without an outer sheath. Its listed continuous temperature range is −60 °C (−76°F) to +180 °C (356°F).
Typical application

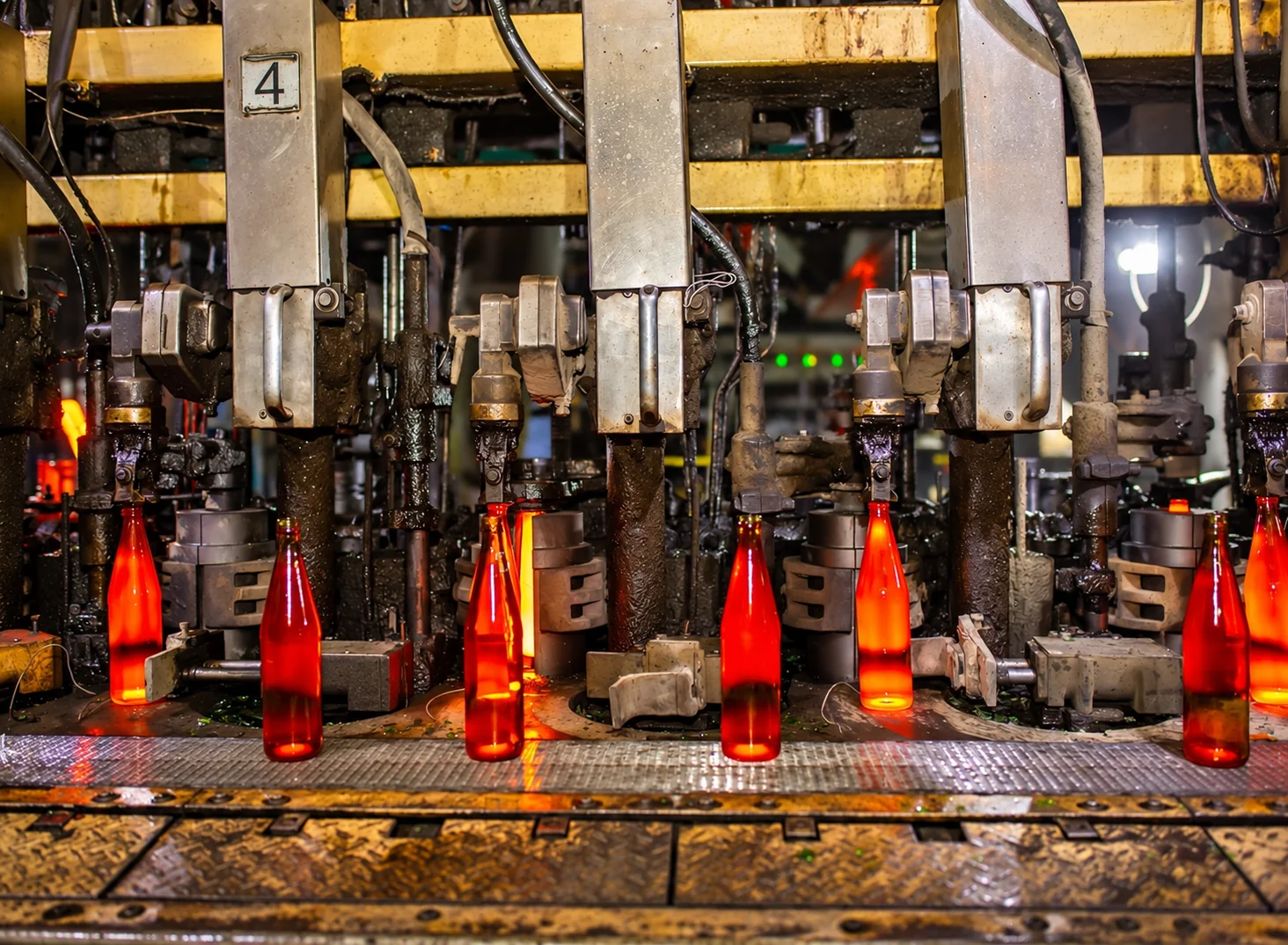

APPLICATION / Glass processing
Silicone Cable for
Glass Industry Equipment
Wiring for glass production equipment.
For heat-exposed leads, we start from AGR silicone single-core wire: fine-stranded tinned copper with silicone rubber insulation, 0.3 mm² to 16 mm², rated −60 °C (−76°F) to +180 °C (356°F) continuous and +200 °C (392°F) short-term in fixed installation.
AT A GLANCE
Glass equipment wiring at a glance
Each glass-equipment connection and the silicone cable we start from.
| Connection | Cable construction | Key point |
|---|---|---|
| Heat-exposed internal leads | AGR silicone single-core wire | −60 °C (−76°F) to +180 °C (356°F) continuous, +200 °C (392°F) short-term |
| Equipment electrical connections | AGR wire, or silicone-sheathed cable if the drawing needs a sheath | Single wires or one sheathed cable, as your drawing shows |
| Glass handling motion | Separate motion specification | AGR is specified for fixed installation and flexible wiring, not continuous motion |
CONNECTION TASKS
Glass equipment wiring
AGR silicone wire is used in the glass industry for equipment wiring near heat. It is a single insulated wire; sheathed, screened or moving connections need their own construction.
EQUIPMENT WIRING

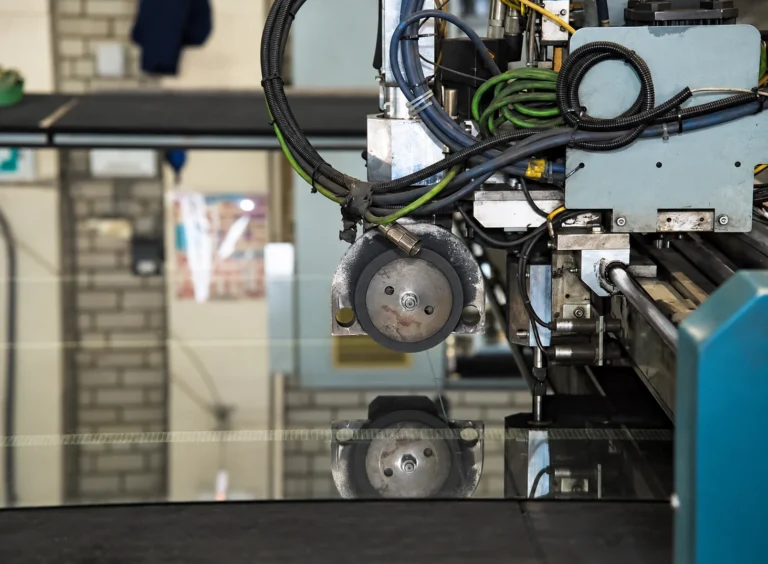

Equipment electrical connections
Specify whether the drawing calls for individual insulated wires or a sheathed cable. Confirm protection and termination details.
Built to your drawing
DYNAMIC ROUTING
Glass handling motion
Describe axes, carrier routing and repetitive movement. Heat resistance does not make a wire suitable for robot or carrier motion.
Separate motion specification
SELECTION CHECKS
Operating conditions to specify
Include these conditions with your enquiry so we can select the right cable.
Installation zone
The connection's location and temperature, independent of the glass-processing temperature, set the requirement.
Wire protection
AGR is an insulated single core without an outer sheath, so the enclosure and routing protection must be defined.
Handling interfaces
Moving sections need their travel, bending, torsion and cable-system requirements.
OUR CABLE
Silicone cable construction
Construction and technical data.
AGR / SINGLE-CORE WIRE
AGR silicone-insulated single-core wire
- Temperature range
- −60 °C (−76°F) to +180 °C (356°F) continuous; +200 °C (392°F) short-term (fixed installation)
- Continuous / short-term
- +180 °C (356°F) continuous, +200 °C (392°F) short-term
- Conductor
- Fine-stranded tinned copper, IEC 60228 Class 5
- Insulation
- Silicone rubber; no outer sheath
- Sizes
- 0.3 mm² to 16 mm²
- Outer diameter
- 1.8 mm (0.3 mm²) to 8.0 mm (16 mm²)
- Rated voltage
- U0/U 300/500 V from 0.5 mm²; 300/300 V below 0.5 mm²
- Minimum bend radius
- 6 × cable diameter (fixed installation)
- Ventilation
- Provide appropriate ventilation above +100 °C (212°F)
APPLICATION LIMITS
Single-core wire or sheathed cable?
Let the installation drawing determine the required construction.
- AGR single core
- Tinned-copper conductor with silicone insulation; no outer sheath.
- External connection
- If the design requires a sheath or screen, request a separate construction review.
- Handling motion
- Agree the dynamic specification and validation for the selected cable.
TECHNICAL DOCUMENTS
Datasheet & project checklist
Product datasheet and quotation checklist.
AGR silicone-insulated single-core wire
Construction, applications and size table.
Certification is model-specific; the marks on a datasheet do not replace a certificate.Glass processing brief
Send a drawing or existing cable specification with the following information.
What information helps?
- Glass equipment type and connection drawing
- Single-wire or sheathed-cable requirement
- Cable-route temperature, enclosure and mechanical protection
- Movement and screening requirements where applicable
BEFORE YOU SPECIFY
Frequently asked questions
Is it suitable for every hot-end location?
No. AGR's rating applies to the installed wire: up to +180 °C (356°F) continuously and +200 °C (392°F) for short-term exposure. It does not describe the glass-process temperature.
Does AGR have a sheath or a screen?
No. AGR is a single insulated conductor without an outer sheath or screen.
Which AGR sizes are listed for glass equipment?
AGR runs from 0.3 mm² to 16 mm², with outside diameters from 1.8 mm to 8.0 mm; smaller sizes below 0.5 mm² are rated U0/U 300/300 V.
