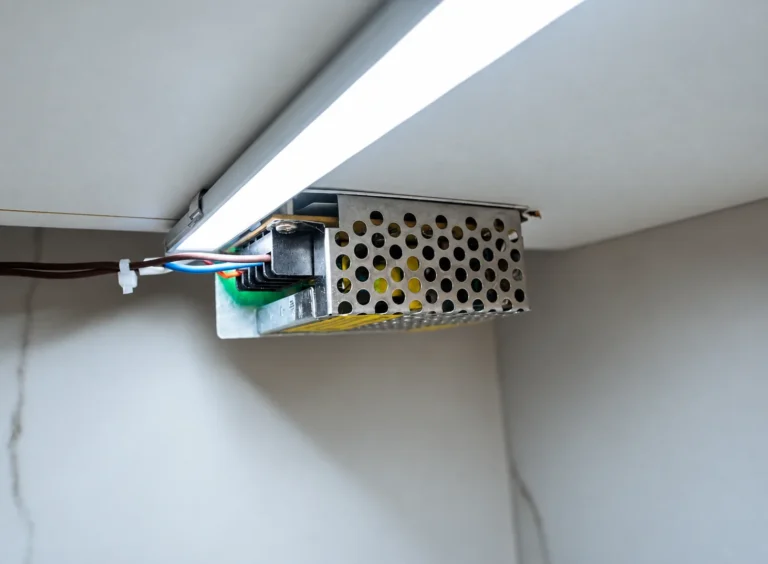

INTERNAL CONNECTIONS
Luminaire internal leads
Provide the connection diagram, conductor size, colour and insulation diameter for the luminaire assembly.
Typical application
APPLICATION / Lighting equipment
Silicone Wire for
Lighting Equipment
Internal wiring for lighting fixtures.
AGR is a silicone-insulated single-core wire with fine-stranded tinned copper and no outer sheath. Listed sizes are 0.3–16 mm²; the fixed-installation rating is −60 °C (−76°F) to +180 °C (356°F) continuous and +200 °C (392°F) short-term.
AT A GLANCE
Lighting fixture wiring at a glance
Each lighting connection and the silicone wire we start from.
| Connection | Cable construction | Key point |
|---|---|---|
| Luminaire internal leads | AGR silicone single-core wire, 0.3 mm² to 16 mm² | No outer sheath; ventilate the fixture above +100 °C (212°F) |
| Driver-to-light connection | AGR wire, or silicone-sheathed cable if a common sheath is required | Single wires or one sheathed cable, as your drawing shows |
| Ignition or special-voltage circuits | Separate special-duty specification | Standard AGR is not rated for ignition circuits |
CONNECTION TASKS

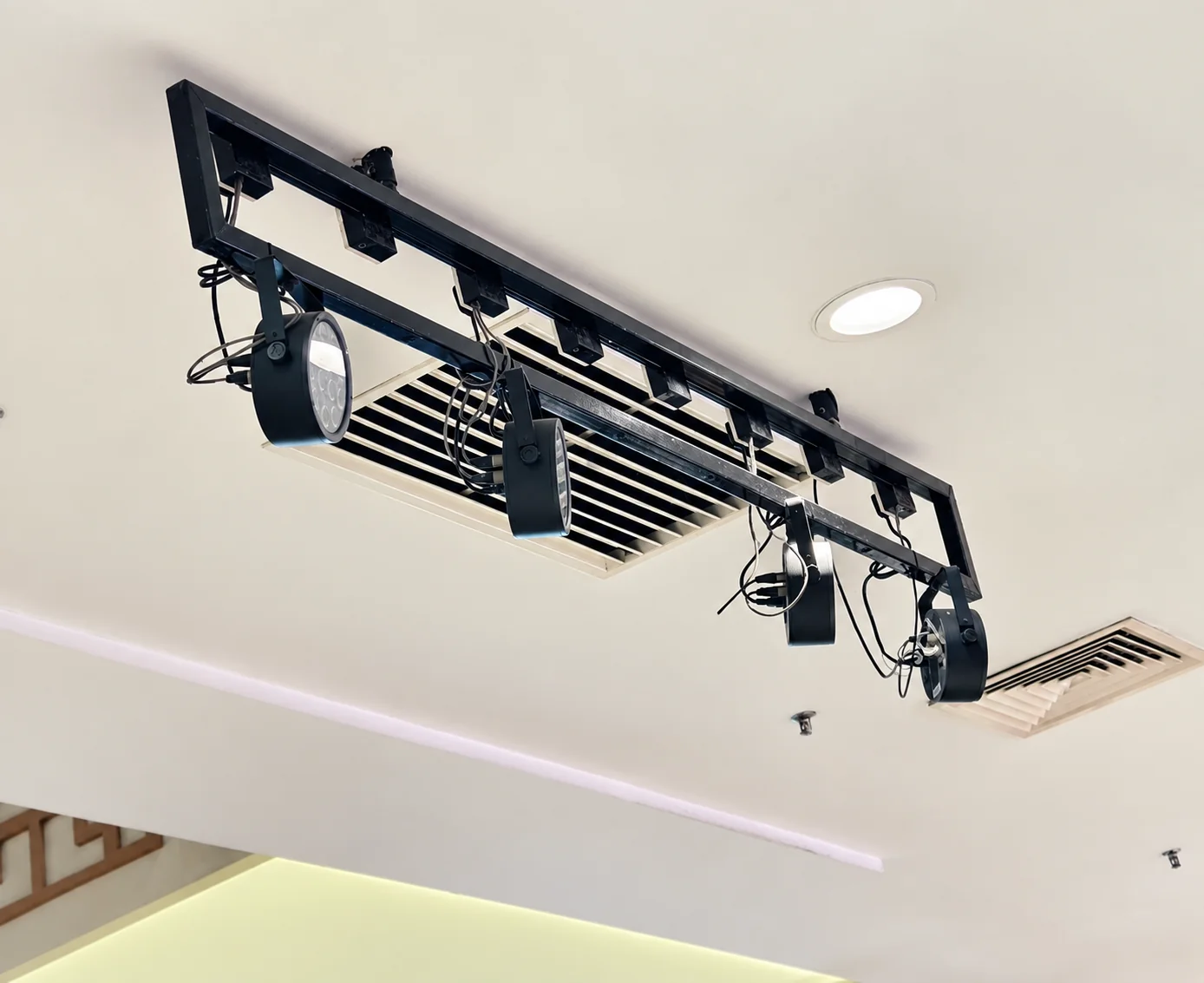

Lighting fixture wiring
Inside the fixture, AGR runs as a single insulated lead. Outdoor luminaires and ignition circuits need their own rating.
CIRCUIT REVIEW

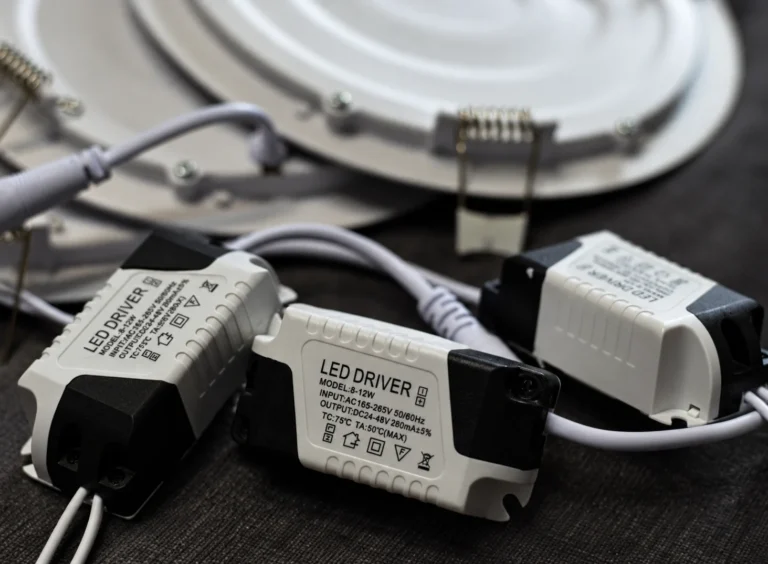

Driver-to-light connection
State the electrical duty and distance between connection points. Identify whether individual wires or a sheathed cable are specified.
Built to your circuit
SEPARATE SPECIFICATION
Ignition or special-voltage circuits
The AGR datasheet gives 300/300 V below 0.5 mm² and 300/500 V from 0.5 mm². It does not specify ignition-pulse performance.
Special-duty model: confirm the rating
SELECTION CHECKS
Operating conditions to specify
Include these conditions with your enquiry so we can select the right cable.
Heat & enclosure
Temperature along the wire route, ventilation and the space inside the fixture set the wire's thermal duty.
Electrical duty
The connection function, working voltage and current, and any ignition requirement decide the wire rating.
Assembly details
Wire size, colour, length, terminals and the documents the luminaire needs complete the specification.
OUR CABLE
Silicone cable construction
Construction and technical data.
AGR / SINGLE-CORE WIRE
AGR silicone-insulated single-core wire
- Temperature range
- −60 °C (−76°F) to +180 °C (356°F) continuous; +200 °C (392°F) short-term (fixed installation)
- Continuous / short-term
- +180 °C (356°F) continuous, +200 °C (392°F) short-term
- Conductor
- Fine-stranded tinned copper, IEC 60228 Class 5
- Insulation
- Silicone rubber; no outer sheath
- Sizes
- 0.3 mm² to 16 mm²
- Outer diameter
- 1.8 mm (0.3 mm²) to 8.0 mm (16 mm²)
- Rated voltage
- U0/U 300/500 V from 0.5 mm²; 300/300 V below 0.5 mm²
- Minimum bend radius
- 6 × cable diameter (fixed installation)
- Ventilation
- Provide appropriate ventilation above +100 °C (212°F)
APPLICATION LIMITS
Wire or cable for each connection
A lighting application can involve more than one wire or cable specification.
- Single-core internal lead
- AGR silicone-insulated wire, without an outer sheath.
- Sheathed connection
- If the drawing requires a common outer sheath, request a separate cable construction.
- Ignition circuit
- Confirm the exact special-duty model and rating before selection.
TECHNICAL DOCUMENTS
Datasheet & project checklist
Product datasheet and quotation checklist.
AGR silicone-insulated single-core wire
Construction, applications and size table.
Certification is model-specific; the marks on a datasheet do not replace a certificate.Lighting equipment brief
Send a drawing or existing cable specification with the following information.
What information helps?
- Luminaire and connection function
- Wire size, insulation diameter, colour and terminal details
- Temperature, ventilation and electrical duty
- Outdoor or ignition requirements if relevant, quantity and documents
BEFORE YOU SPECIFY
Frequently asked questions
Does AGR include an outer sheath?
No. AGR is a single insulated conductor without an outer sheath.
Is it approved for outdoor luminaires or ignition circuits?
The AGR datasheet does not list outdoor-luminaire approval or an ignition-pulse rating.
Which AGR wire sizes are listed?
AGR is listed from 0.3 mm² to 16 mm², with outside diameters from 1.8 mm to 8.0 mm. Sizes from 0.5 mm² are rated U0/U 300/500 V; smaller sizes 300/300 V.
CUSTOM SUPPORT & ENQUIRY
Request a silicone cable quote
Need a custom size or construction? Send your drawing, operating conditions and required quantity for a quotation.
