FIXED CONNECTIONS

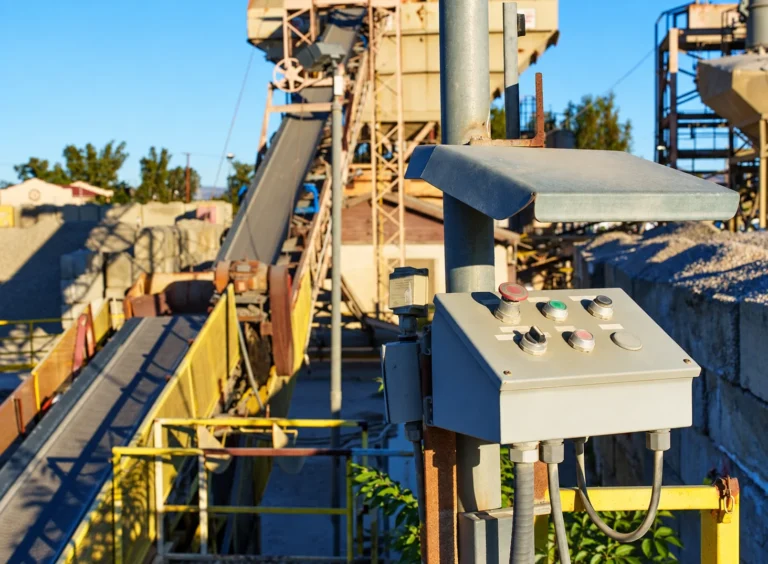

Stationary equipment wiring
Supply power or control requirements and mark the protected route between the equipment and its terminals.
Typical application
APPLICATION / Cement equipment

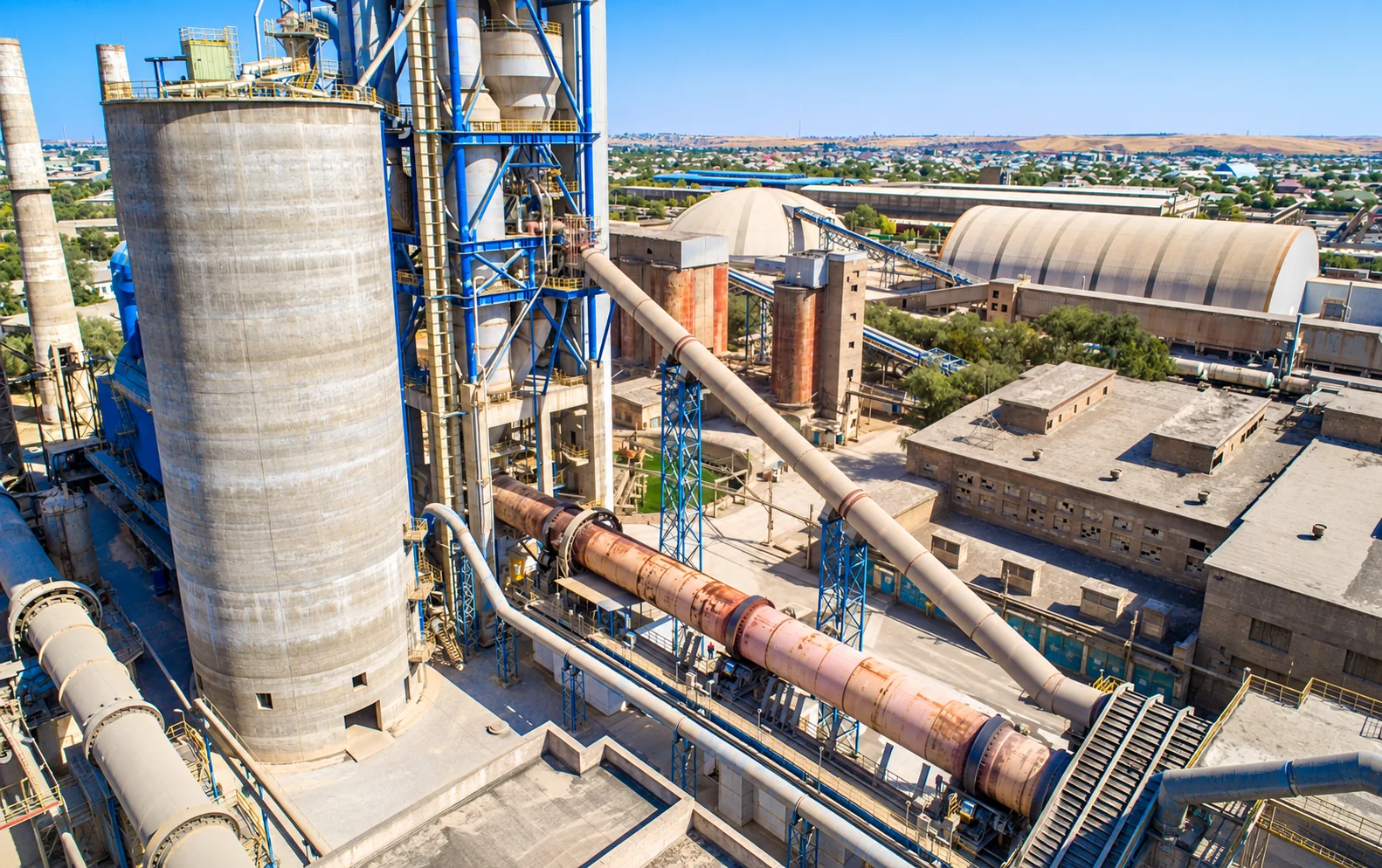

Silicone Cable for
Cement Plant Equipment
Equipment wiring in cement plants.
YGG silicone-sheathed cable has tinned-copper conductors and listed sizes from 2 × 0.14 mm² to 5 × 10 mm². Its fixed-installation temperature rating is −60 °C (−76°F) to +180 °C (356°F) continuous, with +200 °C (392°F) short-term exposure.
AT A GLANCE
Cement plant wiring at a glance
Each cement-equipment connection and the silicone cable we start from.
| Connection | Cable construction | Key point |
|---|---|---|
| Stationary equipment wiring | YGG silicone-sheathed cable | Fixed installation; −60 °C (−76°F) to +180 °C (356°F) continuous |
| Heat-exposed connections | YGG silicone-sheathed cable | Up to +200 °C (392°F) short-term; rating confirmed with your quotation |
| Material-handling movement | Separate motion specification | YGG allows occasional movement only, without pulling force |
CONNECTION TASKS
Cement plant equipment wiring
YGG carries equipment power, control and connection circuits in cement plants. Moving carriers and plant distribution circuits need their own cable specification.
THERMAL REVIEW
Heat-exposed connections
Describe the temperature at the cable position, exposure duration and ventilation. Define mechanical protection separately.
Confirmed with your quotation
DYNAMIC DUTY
Material-handling movement
State travel, bending and repetitive loading for a moving route. YGG is designed for occasional movement only, so a moving route is reviewed separately.
Separate motion specification
SELECTION CHECKS
Operating conditions to specify
Include these conditions with your enquiry so we can select the right cable.
Heat at the cable
The installed environment at the cable position, not the kiln or process rating, sets the temperature requirement.
Dust & mechanical protection
Exposed routes, supports and protection against impact or abrasion decide the protection the cable needs.
Circuit & motion
Fixed equipment, moving machinery and site-distribution connections are specified separately.
OUR CABLE
Silicone cable construction
Construction and technical data.
YGG / EQUIPMENT CONNECTION CABLE
YGG silicone-sheathed cable
- Temperature range
- −60 °C (−76°F) to +180 °C (356°F) continuous; +200 °C (392°F) short-term (fixed installation)
- Continuous / short-term
- +180 °C (356°F) continuous, +200 °C (392°F) short-term
- Conductor
- Fine-stranded tinned copper, IEC 60228 Class 5/6
- Core insulation
- Silicone rubber or fluoropolymer
- Outer sheath
- Silicone rubber; black, blue, grey or red
- Sizes
- 2 × 0.14 mm² to 5 × 10 mm², up to 20 cores
- Outer diameter
- 4.1 mm (2 × 0.14 mm²) to 19.3 mm (5 × 10 mm²)
- Rated voltage
- U0/U 300/300 V below 0.5 mm²; 300/500 V for 0.5–4 mm²; 450/750 V heavy version from 4 mm²
- Minimum bend radius
- 6 × cable diameter (fixed installation)
- Installation
- Fixed, or occasional movement without pulling force; not for direct burial
APPLICATION LIMITS
Cement plant wiring by cable function
Equipment wiring, moving-machine connections and plant distribution use separate cable specifications.
- Equipment power/control
- Match the YGG construction and ratings to a specified fixed connection.
- Moving handling equipment
- Provide the travel profile and cable-system validation requirements.
- Plant distribution
- Use a separate specification for external runs or other distribution duties.
TECHNICAL DOCUMENTS
Datasheet & project checklist
Product datasheet and quotation checklist.
YGG silicone-sheathed cable
Construction, applications and size table.
Certification is model-specific; the marks on a datasheet do not replace a certificate.Cement equipment brief
Send a drawing or existing cable specification with the following information.
What information helps?
- Plant equipment and connection locations
- Voltage/current, core arrangement and required documents
- Local heat, dust, impact and routing protection
- Any moving-route drawing, travel and cycle requirements
BEFORE YOU SPECIFY
Frequently asked questions
Does a silicone sheath protect against abrasion and dust?
A silicone sheath alone does not establish abrasion or dust-protection performance. The cable route also needs suitable mechanical protection.
Can YGG be used for continuous carrier motion?
Not as standard. YGG is designed for fixed installation and occasional movement without pulling force. Continuous motion needs a construction tested for that duty.
Which YGG cable sizes are listed?
YGG is listed from 2 × 0.14 mm² to 5 × 10 mm², with up to 20 cores and outside diameters from 4.1 mm to 19.3 mm. Other core counts, sizes and colours are made to order.
CUSTOM SUPPORT & ENQUIRY
Request a silicone cable quote
Need a custom size or construction? Send your drawing, operating conditions and required quantity for a quotation.
